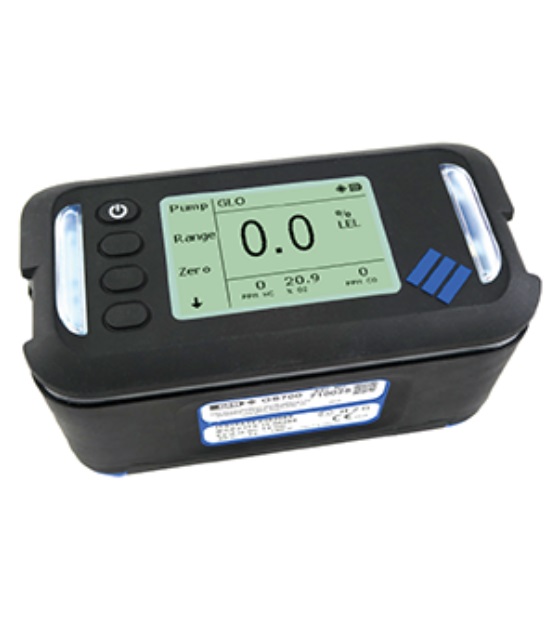

GMI Gasurveyor 700 Series

GMI Gasurveyor 700 Series

Utilising the latest infrared gas detection technology in a robust and reliable design, the GMI Gasurveyor 700 (GS700) is a highly configurable instrument with leading performance and a user-friendly interface which makes it the perfect choice for all gas utility applications.

Key Features

  • LEL & Volume Gas (infrared)
  • Optional sensors including: PPM, O2, CO, H2S
  • Barhole Mode - configurable
Get a Quote
GMI

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

  • • Soft-key Operation
  • • Communication: IrDA & Bluetooth (optional)
  • • 360° Alarms
  • • Lightweight & Rugged
  • • Ingress Protection - IP55
  • • Alkaline or Rechargeable battery options

Ensuring compliance - Intelligent data-logging functionality together with optional GPS mapping simplifies data gathering. Our Instrument Management System improves fleet management by providing access to field usage reports, calibration history, investigation mapping and many other bespoke reports; making it easier for our customers to demonstrate compliance.

Natural gas discrimination - Quickly determines the source of gas leaks, whether it's pipeline gas or naturally occurring biogas; saving valuable time and reducing detection related costs.

Flexible configuration - The GS700 can be configured to meet specific application needs and can be customised to suit a range of user requirements, settings and languages.

Applications:

  • • Gas Leak Outdoors
  • • Pipeline Gas Tests
  • • Purging
  • • Surveying
  • • Bar-holing
  • • Confined Space Monitoring

Common GS700 instruments
  • 7100000A0001 LEL / VOL

  • 7100000R0000 LEL / VOL (rechargeable)

  • 7200000A0001 PPM / LEL / VOL

  • 7200000R0000 PPM / LEL / VOL (rechargeable)

  • 7100300A0001 LEL / VOL / CO

  • 7100300R0000 LEL / VOL / CO (rechargeable)

  • 7200300A0001 PPM / LEL / VOL / CO

  • 7200300R0000 PPM / LEL / VOL / CO (rechargeable)

  • 7102000A0001 LEL / VOL / O2

  • 7102000R0000 LEL / VOL / O2 (rechargeable)

  • 7202000A0001 PPM / LEL / VOL / O2

  • 7202000R0000 PPM / LEL / VOL / O2 (rechargeable)

General Accessories
  • 49100 GS700 Carry case c/w label

  • 12451 Hex Driver for Base Screws

  • 49262 30 mm harness assy

  • 49392 GS700 Quick Operation Guide

  • 49394 GS700 User CD

  • 42200 External (EXT) semiconductor flexi probe

Filter Accessories
  • 12481 Standard Probe Handle Assy

  • 12358 Hydrophobic Filter (for use with 12481)

  • 10077 Dust filter box of 10 (for use with 12481)

  • 67163 Slimline Filter Tips (Pack 30)

  • 49218 Hydrophobic Filter Assembly (internal)

Charging
  • 49460 Charger assembly (incl. universal PSU)

  • 14760 Spare universal Power Supply for charger

Software & Communication
  • 49150 Datalogging package c/w IR adaptor

  • 48365 Spare IR adaptor (used to communicate with PC)

Outer Casing Spares
  • 49221 Rechargeable Battery Pack

  • 49243 Battery covering c/w fittings (for Dry cell only)

  • 49241 Top cover assembly

Sensors
  • 66066 Oxygen Cell

  • 65127 CO Cell

  • 65128 H2S Cell

  • 66067 Dual tox (CO/H2s) Cell

  • 42195 PPM semiconductor Cell

Flow Path Spares
  • 49439 Inlet Connector stainless steel

  • 12006 Inlet Connector "O" Ring

  • 12039 Retaining clip (2-off required per instrument)

  • 49405 Inlet pipe

  • 49406 Outlet pipe

  • 12035 O-ring (small, use with 49405 & 49406)

  • 12038 O-ring (large, use with 49405 & 49406)

  • 49235 Pump Assy

  • 48305 7 Cell gasket

  • 48328 O2, CO/H2S Blanking Plug

  • 48325 Pellistor & CO2_IR blanking plug

  • 67067 Spacer for PPM semiconductor cell (min. order qty. 5-off)

Assembly Spares (Screws & Washers)
  • 24716 Case assembly screws (4-off required per instrument)

  • 24285 Washer for 24716 (4-off required per instrument)

  • 24931 Cell block screw (1-off required per instrument)

  • 24702 Sensor PCB screw c/w washer (4-off required per instrument)

  • 13656 Security Top Cap (black)

  • 13657 Security Bottom Cap (black)

  • 13658 Punch for security (top) cap

PCBs
  • 49223 Main PCB Assy (incl. LCD & 4-button frame) *

  • 49223B Main PCB Assy (incl. LCD & 4-button frame) with Bluetooth *

  • 49223C Main PCB Assy (incl. LCD & 4-button frame) with Bluetooth & GPS *

  • 49223G Main PCB Assy (incl. LCD & 4-button frame) with GPS *

  • * Requires S/N and Certification & Configuration Review (CCR)

  • 49252 Sensor PCB

  • 49213 DryCell Battery PCB assy

Other Spares
  • 49433 4 Button Frame

  • 49441 LCD

  • 49237 Buzzer / Sounder
