Teledyne GMI GT Series

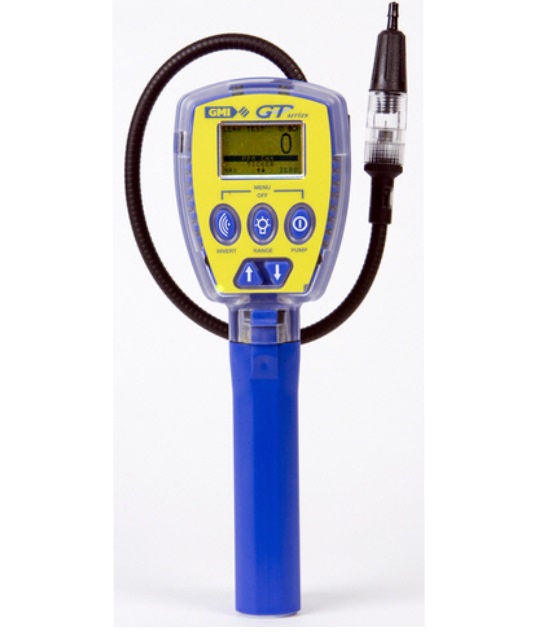

The GMI GT Series is a range of Portable Gas Detection instruments that combine quality, ruggedness and advanced technology in a user-friendly, hand-held gas detector. The GT Series has been designed for the gas industry, satisfying all the needs of service technicians within a single unit.

Key Features

  • Seven modes of operation
  • Methane leak detection from PPM to Volume gas with ultrafast ppm response
  • Optional O₂, CO, and H₂S ranges
  • Manual and automatic data logging
  • 'Ticker' (Geiger) indicator on ppm range (visual and audible)
  • Flashlight and pressure range



Find out more on our sister site Cadmus Products.

Get a Quote
GMI

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

With 7 modes of operation, the GT Series is the most versatile instrument available for working with gas.

The GT Series is suitable for the following operations:

  • • Leak test
  • • Confined space entry
  • • Barhole testing
  • • Carbon monoxide
  • • Purge
  • • Sniffer
  • • Pressure leak tightness

US and South America Only (UL certified) - Instrument Only
  • 67400 GT-40 ppm / LEL / GAS / CO

  • 67410 GT-41 ppm / LEL / GAS / O2

  • 67420 GT-42 ppm / LEL / GAS / CO / O2

  • 67430 GT-43 ppm / LEL / GAS / CO / O2 / H2S

  • 67440 GT-44 ppm / LEL / GAS

  • Above instruments are supplied with User Handbook, Rubber Boot, Quick OP Guide, Calibration Certificate and Configuration Report.

US and South America Only (UL certified) - Instrument c/w Case and Accessories
  • 67401 GT-40 ppm / LEL / GAS / CO

  • 67411 GT-41 ppm / LEL / GAS / O2

  • 67421 GT-42 ppm / LEL / GAS / CO / O2

  • 67431 GT-43 ppm / LEL / GAS / CO / O2 / H2S

  • 67441 GT-44 ppm / LEL / GAS

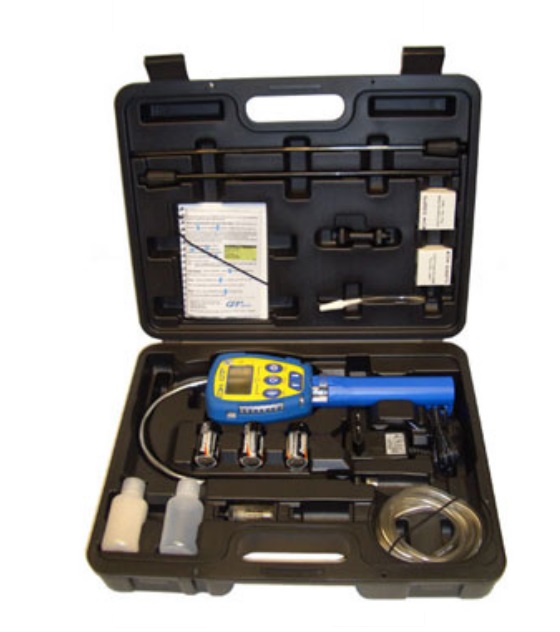

  • Above instruments supplied in Carrying Case with Solid End Probe, Tygon Tubing, Hydrophobic Filter (Pack / 2), Wrist Strap, Handbook, Quick OP Guide, Cal. Certificate & Config. Report, Rubber boot.

Rest of World (ATEX, IECEx, CSA certified) - Instrument Only
  • C67400 GT-40 ppm / LEL / GAS / CO

  • C67410 GT-41 ppm / LEL / GAS / O2

  • C67420 GT-42 ppm / LEL / GAS / CO / O2

  • C67430 GT-43 ppm / LEL / GAS / CO / O2 / H2S

  • C67440 GT-44 ppm / LEL / GAS

  • Above instruments are supplied with User Handbook, Quick OP Guide, Calibration Certificate and Configuration Report.

Rest of World (ATEX, IECEx, CSA certified) - Instrument c/w Case and Accessories
  • C67401 GT-40 ppm / LEL / GAS / CO

  • C67411 GT-41 ppm / LEL / GAS / O2

  • C67421 GT-42 ppm / LEL / GAS / CO / O2

  • C67431 GT-43 ppm / LEL / GAS / CO / O2 / H2S

  • C67441 GT-44 ppm / LEL / GAS

  • Above instruments supplied in Carrying Case with Solid End Probe, Tygon Tubing, Hydrophobic Filter (Pack / 2), Wrist Strap, Handbook, Quick OP Guide, Calibration Certificate and Configuration Report.

  • NOTE: 1 Dry Cell Batteries supplied as standard w/ all GT instruments

  • NOTE 2: Drycell batteries are common to all countries.

  • To comply with certification requirements please select the appropriate rechargeable batteries as marked below.

  • 67292 Drycell Batteries (pack of 3)

  • 67293 GP Rechargeable Batteries (pack of 3) - UL Certification

  • 67294 Panasonic Rechargeable Batteries (pack of 3) - ATEX Certification

Accessories
  • 67108 Carrying Case

  • 12480 35cm Solid End Probe

  • 12393 80cm Solid End (Barhole) Probe

  • 67185 Stainless Steel (Flue) Probe (use with 67142 & 67148)

  • 67142 Chemical Filter Assembly

  • 67148 Bottle of charcoal granules

  • 67205 Bottle of Colour Indicated Silica Gel (water-absorbent)

  • 67270 Bottle of NOx Filter Material

  • 12712 Sample Line (Tygon Tubing) per metre

  • 67196 Cotton Filter Holder

  • 10077 Cotton Filter (Box of 10) - (for use with 67196)

  • 13936 Charcoal Filter

  • 67095 Wrist Strap

  • 67281 Wall Mount Storage Clip

  • 67120 Rubber boot

  • 67134 Standard Instrument Charger (Universal Plug)

  • 66206GT 12v / 24v Vehicle Instrument charger

  • 67179 Filtered Flue Probe assy

  • 67101 Charging Station (including Power Supply)

  • 12444 Power Supply - Universal (for charging station or Auto Cal Station)

  • 67202 Pressure Port Connector Assembly

Software packages
  • 67238 GT Calibration System Package (including USB interface)

  • 67216 GT Set-up Software Package (including USB interface)

  • 67164 GT DataDownloading Package (including USB interface)

Calibration Stations Without PC Controller

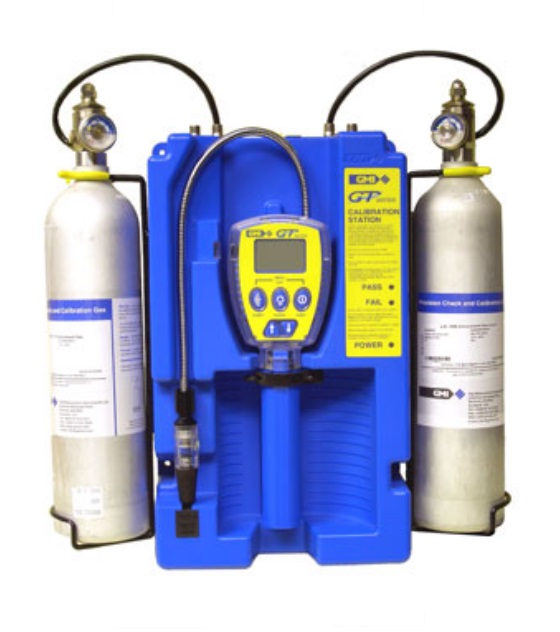

  • 67102 Automatic Calibration Station (Mixed Gases) - 6mm inlet nozzles

  • 67102Q Automatic Calibration Station (Mixed Gases) - 1/4" inlet nozzles

  • 67109 Automatic Calibration Station (Individual Gases) - 6mm inlet nozzles

  • 67109Q Automatic Calibration Station (Individual Gases) - 1/4" inlet nozzles

Calibration Stations With PC Controller
  • 67621 Auto Calibration Station (Mixed Gases) - 6mm inlet nozzles

  • 67621Q Auto Calibration Station (Mixed Gases) - 1/4" inlet nozzle

  • 67611 Auto Calibration Station (Indiv'l Gases) - 6mm inlet nozzle

  • 67611Q Auto Calibration Station (Indiv'l Gases) - 1/4" inlet nozzle

  • 14670 Calibration Gas Humidifier - 6 mm Connections

  • 14670Q Calibration Gas Humidifier - 1/4" Connections

  • 14670P Calibration Gas Humidifier - Push on Connections

  • 67257 Regulator for Automatic Calibration Station - 6 mm Connections

  • 67257Q Regulator for Automatic Calibration Station - 1/4" Connections

Auto Calibration Station spares
  • 67105 GT Auto Cal Station Pump

  • 67103 GT Auto Cal Station Main Pcb

  • 67180 GT Auto Cal Station in-line Filter

  • 67528 GT Auto Cal Station Processor Fan

  • 67211 GT Auto Cal Station Display PCB Assembly

  • 67009 ppm Sensor Assembly

  • 67018 LEL / Gas Flammable Sensor

  • 67272 LEL / Gas Flammable Sensor with Carbon Cloth

  • 66066 O2 Sensor

  • 67176 CO Sensor

  • 66067 CO / H2S Dual Sensor (GT-43 Only)

  • 67111 Sensor Blanking Plug

  • 67124 Front Cover Assembly

  • 47038 LCD Display

  • 67026 Keypad Moulding

  • 67007 Battery Cover Assembly

  • 67125 O-ring - Battery Cover

  • 67360 Captive Thumb screw

  • 67058 Dust Cover - Charging Socket

  • 67034 Probe Clip Moulding

  • 24577 Fixing Screw - Probe Clip

  • 24689 Fixing Screw - Rear Cover (M3 x 16)

  • 24655 Fixing Screw - Rear Cover (M3 x 12)

  • 67395 Flexible Probe and Rear Cover Assembly *

  • 67349 Flexible Probe Assembly c/w y-piece, tubing and grub screw *

  • * From S/N 617243 use PN 67395. If older use PN 67349

  • 24781 Self Tapping Screw - Flexible Probe Internal Connection

  • 67039 Probe Filter Bulb (Firmware 2.04 or earlier)

  • 67259 Hydrophobic Filter (Firmware 2.04 or earlier - Pack of 4)

  • 67213 Hydrophobic Filter (Firmware 2.05 or above)

  • 67178 Probe Filter Bulb (Firmware 2.05 or above)

  • 12737 O-ring - Probe Tube / Filter Bulb

  • 12379 Probe Washer - Filter Bulb / Probe Connector

  • 67184 Probe Filter Assembly

  • 67163 Dust Filters (Box 30)

  • 67189 Dust Filter washer

  • 67266 Pump Assembly (including inlet / outlet tubing)

  • 67266R Pump Assembly - REFURBISHED (including inlet / outlet tubing)

  • 67027 Flow Path Gasket

US and South America Only (UL)
  • 67540 Main PCB Assembly - GT40

  • 67541 Main PCB Assembly - GT41

  • 67542 Main PCB Assembly - GT42

  • 67543 Main PCB Assembly - GT43

  • 67544 Main PCB Assembly - GT44

Rest of World (ATEX, IECEx, CSA)
  • 67540V3 Main PCB Assembly - GT40

  • 67541V3 Main PCB Assembly - GT41

  • 67542V3 Main PCB Assembly - GT42

  • 67543V3 Main PCB Assembly - GT43

  • 67544V3 Main PCB Assembly - GT44

  • Serial Number Required for Main PCB supply.

  • 24576 Fixing Screw - Main PCB

  • 24277 Washer - Main PCB (use with 24576)

  • 67004 Feedthrough PCB Assembly

  • 67012 PSU Module Assembly

  • 67020 Rear Cover Assembly (Serial Number Required)

  • + Suitable only for S/N 617242 and older
