GMI Optical Methane Detector (OMD)

GMI Optical Methane Detector (OMD)

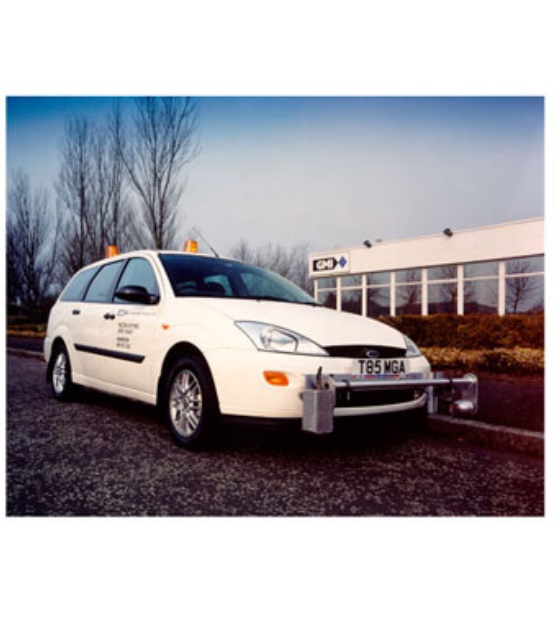

The vehicle mounted GMI Optical Methane Detector (OMD) uses infra-red technology to specifically detect methane gas leaks down to levels of 1ppm without cross interference to other hydrocarbons.

Key Features

  • Infrared technology
  • Methane specific
  • Instant response
Get a Quote

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

  • • Sensitive to 1 ppm methane
  • • Very high survey speeds (to 50 kph)
  • • Largely unaffected by rain or surface water
  • • No pumps or calibration gases
  • • Global Positioning (GPS) option

The OMD allows surveying of large areas to be undertaken in a fraction of the time of a vehicle survey using conventional FIM's due to the higher ground speeds.


• Gas Surveying

Optical Methane Detector
  • 2510500 Optical Methane Detector - System Only. Display Ranges: 0-10 ppm. 0-30ppm. 0-90ppm. Over -range 200ppm. Vehicle mounted optical infra red gas leak survey system. Complete with fitting kit to allow mounting to front of a wide range of vehicles.

  • 2510539 Power Box Assembly

  • 2510565 Display box

  • 2510592 Light Bulbs

  • 2510689 Bar (51.25")

  • 2510570 Lamp to Power Box

  • 2510572 Power Box to Battery

  • 2510576 Display to Power Box

  • 2510579 Receiver to Power Box
