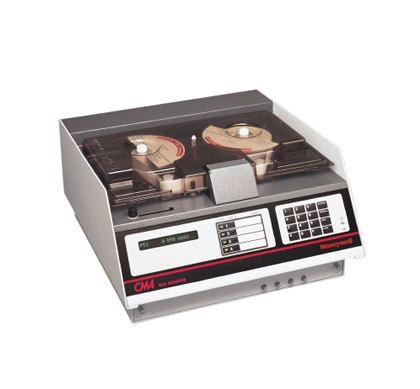

Honeywell Analytics CM4 Continuous Multipoint Monitor

Honeywell Analytics CM4 Continuous Multipoint Monitor

The Honeywell Analytics CM4 Continuous Multipoint Monitor is a hazardous gas monitor for continuous monitoring at 4 points.

Key Features

  • Total surveillance at all times
  • Easy installation into virtually all annunciation and shutdown systems
  • Physical evidence of events
Get a Quote
Honeywell Analytics

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

This CM4 unit represents the latest in interference free, low maintenance, low cost of ownership solutions for the semiconductor, pharmaceutical and chemical industries.

Its low profile 1/4" tubing minimises intrusion into process areas, ducts, gas cabinets, etc. A variety of signal outputs are available making CM4 a truly flexible product. It easily installs into most building alarm systems.

An optional rack mount enclosure and printer fill out the product range, providing convenient housing and documentation capability. The unit is capable of detecting over 25 gases - some within the same family (hydrides, mineral, acids, etc.)

Additional Features and Benefits:

Continuous Monitoring on 4 Points - Total surveillance all the time

Chemcassette Technology - Reliable, interference-free method provides physical evidence of events

Analog and Serial Outputs - Permits easy installation into virtually all annunciation and shutdown systems

300' (90m) Sampling Distance - Monitors can be positioned conveniently with minimal fab intrusion

Table, Wall or Rack Mount Versions - Flexible to meet any requirement

LonWorks Interface Available - Permits peer to peer communication and low cost of installation

Serial Printer Option - Permits archiving of all important events and system configurations

Integral Audio and Visual Alarms - Easily identifies all events

Model CM4 Monitor Base Unit
  • 1874-1000 For 100/120 VAC, 50/60 Hz operation

  • 1874-1002 For 220/240 VAC, 50/60 Hz operation
Model CM4-P Pyrolyzing Gas Monitor For NF3 Base Unit
  • 1874-0000 100/110 VAC version

  • 1874-0002 230 VAC version
Installation Kit
  • 874008 Includes sample and exhaust tubing, technical handbook, and installation drawings/instructions
Configuration Kit
  • 1874-0091 Table mount kit: Includes Input/Output module, table ribbon cable assembly, table I/O module cover, rubber feet, label kit, I/O insulator, and hardware package

  • 1874-0093 Wall mount kit: Includes wall mounting brackets, Input/Output module, ribbon cable assemblies, I/O module cover, rubber feet, label kit, I/O insulator and hardware package

  • 1874-0197 Rack Mount Kit ?A? : For a new CM4 (only) to be added first revision enclosure (original System 16 style) in the field. Includes I/O module and bracket for rack mounting, ribbon cable assembly, tubing, manifold, serial pcb cover, label kit, I/O insulator label, slide/bracket assemblies and hardware package

  • 1874-0095 Rack mount Kit "B": For a new CM4/CM4-P ordered concurrently with a rack enclosure (Schroff version). Includes all configuration changes required to permit quick installation of a new CM4 unit into a new MDA rack. I/O module is installed in CM4 enclosure, all slides are installed on units

  • 1874-0149 Rack Mount Kit ?C? : For a new CM4/CM4-P rack mount version to be field installed into a previously purchased Schroff enclosure. I/O module wrapped separately for attachment to rear panel of enclosure prior to installation of unit. Slides supplied with enclosure system
Power Cords
  • 874333 North America (120VAC)

  • 1874-0112 Japan (100VAC)

  • 874558 Great Britain

  • 874561 Europe

  • 874557 Australia

  • 874560 Switzerland

  • 874559 Denmark
Calibration
  • 1971-0009 Ammonia (II)/ Amines, DMA, TDMAT

  • 1971-0206 Ammonia - Extended Play ****

  • 1971-0269 Ammonia XP4, DMA, TDMAT

  • 1971-0021 Chlorine III** (Chlorine, Nitrogen Dioxide)

  • 1971-0171 Chlorine - Extended Play

  • 1971-0267 Chlorine XP4

  • 1971-0030 Chlorine Dioxide

  • 1971-0141 Fluorine, Chlorine

  • MVIP2025-C Hydrazine (UDMH)

  • 1971-0164 Hydrazine (N2H4)

  • 874032 Hydrides (Arsine [Std], Arsine [Dry], Diborane, Hydrogen Selenide, Hydrogen Sulphide, Phosphine, Silane, Tertiary Butyl Arsine)

  • 1971-0104 Hydrides - Extended Play* (Arsine, [Std], Diborane, Phosphine, Silane)

  • 1971-0265 Hydrides XP4 (Arsine, [Std], Diborane, Phosphine, Silane, Hydrogen Selenide, Hydrogen Sulphide, Hydrogen Sulphide Low Level, Hydrogen Sulphide Dry, Tertiary Butyl Arsine, Tertiary Butyl Phosphine)

  • 1971-0105 Hydrides Extended Play* (Arsine [Low Level] only, Germane)

  • 1971-0266 Hydrides XP4 (Arsine [Low Level] only, Germane)

  • 1971-0010 Hydrogen Cyanide

  • 1971-0014 Hydrogen Sulphide

  • 1971-0020 Hydrogen Sulphide (Low Level)

  • 1971-0016 Phosgene

  • 1971-0120 Phosgene - Extended Play***

  • 1971-0270 Phosgene XP4, Phosgene High Level

  • 874038 Mineral Acids (Hydrogen Bromide, Hydrogen Chloride, Hydrogen Fluoride, Hydrogen Iodide)**

  • 1971-0032 Mineral Acids (Low Levels) Hydrogen Bromide, Hydrogen Chloride, Boron Trifluoride

  • 1971-0214 Mineral Acids XP (Boron Trifluoride, Hydrogen Bromide [std and low level], Hydrogen Chloride, Hydrogen Cyanide, Hydrogen Fluoride [std and low level], Nitrogen Trifluoride)

  • 1971-0253 Mineral Acids XP Low Level HF calibration. May require export license from the US Department of Commerce - See bulletin 6023.

  • 1971-0272 Mineral Acids XP4 (4 month) (Boron Trifluoride, Hydrogen Bromide [std and low level], Hydrogen Chloride, Hydrogen Cyanide, Hydrogen Fluoride [std only], Nitrogen Trifluoride)

  • 1971-0268 Mineral Acids XP4 (4 month), includes Hydrogen Fluoride Low Level. May require export license from the US Department of Commerce - See bulletin 6023.

  • 1971-0217 Nitrogen Triflouride XP (CM4-P only)

  • 1971-0271 Nitrogen Trifluoride XP4 (CM4-P only)

  • 1971-0040 Nitrogen Trifluoride (CM4-P only)

  • 1971-0260 Sulphur Dioxide

  • MVIP2149-C Triethyl Amine


  • * Requires special XP Hydrides Chemcassette 1874-9300. Order separately.

  • ** Points monitoring corrosive or mineral acid gases in dusty or outdoor locations (< Class 10,000 clean room) should use end of line dust filters fitted with Teflon membranes. See Technical Note 1998-0080 for further information.

  • *** Requires special XP Phosgene Chemcassette 1874-9307. Order separately.

  • **** Requires special XP Ammonia Chemcassette 1874-9309. Order separately.
Alarm Level Settings
  • 1874-0330 1 x TLV and 2 x TLV (A2) are standard alarm settings. However, 1/2 x TLV (A1) and 1 x TLV (A2) can be factory preset. Order if required Seven (7) Unit Enclosure for CM4

  • 1874-0050 Seven (7) Unit Enclosure for CM4: 100- 120VAC

  • 1874-0054 Factory installed kit for 230VAC operation (for European systems)
Five (5) Unit Plus Printer Enclosure for CM4
  • 1874-0051 Five (5) unit plus printer enclosure for CM4: 120VAC

  • 1874-0052 Factory installed kit for 100VAC operation

  • 1874-0053 Factory installed kit for 230VAC operation
General
  • 1874-0056 Blanking panels for enclosure positions without monitors or printer installed

  • 1874K0350 Rack wiring kit for 7 LonWorks CM4s (for use w/Schroff enclosure)

  • 1874-0194 Caster option (permits Schroff enclosure to be moved for cleaning or maintenance purposes. Factory installation highly recommended
Special Configuration Options
  • 874018 Duty cycle option: Allows selection of time period before next window advance. Reduces tape consumption

  • 874016 Remote alarm reset contact

  • 874010 Sample line isolation valve (per point)
4-20 mA Outputs
  • 1874A0304 4-20mA option for ?new? style unit (w/IRDA port) (Single card [1 per CM4] with 4 isolated channels, cannot be used for CM4-P)

  • 1874-0335 4-20mA non-isolated for CM4 units (Rev 8 and under) and CM4-P units (all Revs) (choose this 4-20mA option carefully. Installation guidelines, found in the CM4 technical handbook, must be followed exactly, to prevent electrical noise from entering the instruments. [4 per CM4 needed]
Serial Communications Interfaces
  • 874021-R RS232 for serial printer or remote unidirectional interface (50 ft normal distance, cable dependent)

  • 874022-R RS232 for bidirectional remote communication

  • 874023-R RS422 for serial printer or remote unidirectional interface

  • 874024-R RS422 for remote bidirectional communication

  • 874327-R RS485 for remote bidirectional communication

  • 1874-0332 LonWorks interface option (only with new units)

  • 1874-0344 LonWorks interface option (retrofit)

  • 1874A0355 LonWorks wiring needed for above LonWorks options, if used in non-rack mount applications

  • 1998-0272 LonWorks network considerations Tech Note
Option, Printer PCB Configuration for Printer Share Box
  • 1874-0323 Single printer configuration

  • 1874-0324 Printer share box configuration
Sample Tubing
  • 102628 Tubing, FEP Teflon 0.190" I.D. x 0.250" O.D - 400 ft roll (121m) Alternate tubing for Vertex samples lines. Used with Vertex M where longer sample line length for multiple analysers are required. Consult the transport time chart in the Vertex Technical Handbook for additional information

  • 0235-0109 Tubing, FEP Teflon 0.190" I.D.-1000 ft roll (304m)

  • 1283K1090 Duct adaptor for 1/4" O.D. tubing for 4-26" round ducts

Field Upgrade Kits
  • 1874-0090 Table mount field kit (includes table ribbon cable assembly, table I/O module cover, rubber feet, label kit, and hardware package)

  • 1874-0092 Wall mount field kit (includes wall mounting brackets, ribbon cable assembly, I/O module cover, label kit and hardware package)

  • 1874-0094 Rack mount conversion kit (includes all parts and instructions necessary to change a previously purchased wall or table mount unit to a Schroff rack mount unit)

  • 874550 Additional rack mounting kit for earlier (System 16) style MDA enclosure (includes slide/bracket assemblies, I/O module mounting bracket assembly, installation drawing and hardware)

  • 0270-0001 Rack mounting slides for non-Honeywell Analytics 19" racks

  • MVIP3251 Enclosure printer kit for customer installation into Schroff enclosure purchased previously
Required for above listed printer field conversion kit or for separate field installed printer
  • 1874-0007 Printer share box kit (6 position) 110VAC includes (qty. 6) 10 ft cables

  • 1874-0008 Printer share box kit (6 position) 230VAC includes (qty. 6) 10 ft cables

  • 1874-0010 Printer share box kit (11 position) 110VAC includes (qty. 11) 10 ft cables

  • 1874-0011 Printer share box kit (11 position) 230VAC includes (qty. 11) 10 ft cables
Spare cables for printer share box to CM4 connection (DB25 to DB9)
  • 1874-0031 50 ft (15 m) cable

  • 1874-0033 10 ft (3 m) cable
Printers

  • 874012 Okidata desktop printer option, 24 pin, dot matrix - non-rack mount, serial input Includes 10 ft cable 110/115 VAC
Accessories
  • 874264 Optics verification card

  • 971305 Technical Handbook - English

  • 1998M0043 Technical Handbook - Clean Room

  • 1998M0086 Technical Handbook - French

  • 1998M0119 Technical Handbook - German

  • 1998-0151 CM4-P Supplement

  • 1998-0002 CM4/CM4-P Quick Reference Card

  • 1991-0002 Quick Reference Card holder
Consumables
  • 1991-0063 Rack Mount Printer Paper

  • 0185-0022 Printer Ribbon (Perifics)

  • 0185-0029 Replacement Ribbon Cartridge (Okidata)

  • 874212 Chemcassette Carrier (w/o Chemcassette)

  • 780248 End of Line Particulate Filter. For use as End of Line filter for Non-Corrosive gases

  • 1991-0147 End of Line Particulate Filter for Corrosive Gases, Disposable. This disposable filter provides protection against particulate build up in the sample line when monitoring for Corrosive Gases

  • 1830-0055 End of Line Particulate Filter for Corrosive Gases, Reusable. This reusable filter housing provides protection against particulate build up in the sample line when monitoring for Corrosive Gases. Replaceable filter element (P/N 0235-1072) purchased separately.

  • 0235-1114 Dust Filter for Schroff Enclosure

  • 0235-1072 Replacement "Corrosive" Filter Elements (pk 100). For use in 1830-0055 filter housing

  • 1874-0139 Freon Filter for CM4-P (pk of 4)

  • 1295K0497 H2S in line Scrubber Filter (1 per individual inlet line). Up to 3 months use

  • 874553 Blanking Panel for earlier style MDA enclosure

  • 0235-1159 Pump Diaphragm (HYPALON), 60 Hz

  • 0235-1108 Pump Repair Kit (HYPALON), 60 Hz

  • 0235-0095 Union Fitting
