Micronics UF AV5500

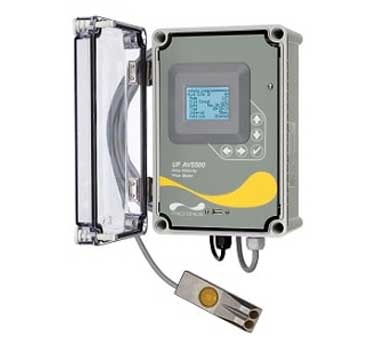

Micronics UF AV5500 Area-Velocity Flow Meter

The Micronics UF AV5500 is an irregular, open channel flow measurement solution with data logger and no need for flumes or weirs.

For part filled pipe and open channel monitoring
New 26 million point data logger now as standard
Streamlined sensor for invasive measurement
Easy to use
Irregular channel
Monitor flows through partially full pipes or open channels
Eliminates the need for flumes or weirs
Automatic temperature compensation
Irregular channel shapes

Get a Quote
Micronics

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
  • Enclosure:– Watertight and dustproof (IP66).
  • Power Input:– 100-240VAC, 50/60HZ., 10VA maximum, 9-32VDC.
  • Outputs:– 3x Isolated 4-20mA into 1000 ohm load. Programmable for Flow, Level or Velocity. Modbus RTU via RS-485 Option.
  • Relays:– 2 x form ‘C’ dry contacts rated 5 amp SPDT Programmable for Flow Proportional pulse (sampler/totalizer) flow and/or level alarm.
  • Velocity Range:– 0.03 to 6.2m/sec.
  • Level Range:– Minimum Head 25.4mm to maximum head 4.5m.
  • Accuracy Level: +/- 0.25% of Range,
  • Velocity:- +/-2% of Reading,
  • Linearity and Repeatability:– 0.1%.

New Industrial Automation Protocols: Modbus RTU via RS485
New Sensors: Intrinsic Safety Barriers for mounting in hazardous locations contact Micronics
Enclosure Heater: Thermostatically controlled to -40° C/F – recommended for temperatures below 0°C (32°F).
