HomeGas AnalysersSafety › MSA Altair 4X Multi-Gas Detector

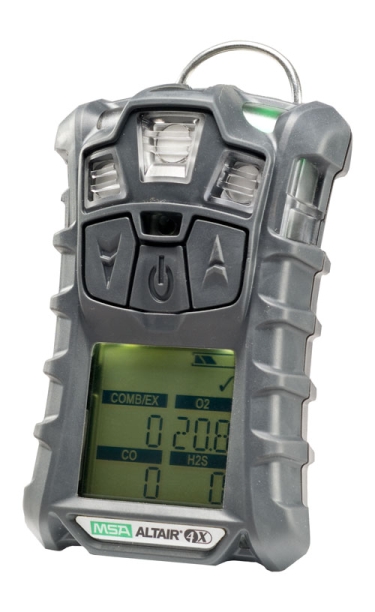

MSA Altair 4X Multi-Gas Detector


The ALTAIR 4X Multi-Gas Detector measures up to four gases from a wide range of sensor options including LEL, O2, CO, H2S, NO2 and SO2. A rugged housing provides unsurpassed durability, including the ability to survive a 6 m drop test onto concrete. And with large, glove-friendly buttons and a high-contrast display, the ALTAIR 4X is easy to operate in any work environment, even low-light conditions. A full range of accessories is availabe.

The real strength of the ALTAIR 4X Multigas Detector comes from new sensor technology.

MSA XCell Sensors double the industry average, and are engineered using MSA's proprietary application-specific integrated circuit (ASIC) design. The sensors' controlling electronics is miniaturized and placed inside the sensor itself.

The XCell Sensors - Superior stability, accuracy, repeatability and fast response characterize the new MSA XCell sensors. They are remarkably long-lasting and designed for an average life of more than four years. An end-of-sensor-life indicator gives advanced warning to user, eliminating service outages. Micro-electronics inside the sensor lead to faster response and calibration times.

Built on Durability - The ALTAIR 4X Multi-Gas Detector for LEL, CO, H2S and O2 is as tough and functional as it looks. A rugged housing IP 67 (dust and water resistant) provides unsurpassed durability, including the ability to withstand a 6 m drop onto concrete. And with large, glove-friendly buttons and a highcontrast display, the ALTAIR 4X Multi-Gas Detector is easy to operate in any work environment, even low-light conditions.

Powered by Performance - Toughness and durability aren't the whole story. The real strength of the ALTAIR 4X Multi-Gas Detector comes from new sensor technology.

MSA XCell Sensors are designed for an average life of more than four years and are engineered using MSA's proprietary application-specific integrated circuit (ASIC) design. By miniaturizing the sensors' controlling electronics and placing them inside the sensor itself, MSA XCell Sensors offer superior stability under extreme environmental conditions, accuracy and repeatability.

MSA XCell Sensors are a breakthrough in chemical and mechanical sensor design, enabling faster response and calibration times. With less time spent on calibration and bump tests, you save calibration gas, maintenance costs and, in turn, save money. But most importantly, in your industry, saving seconds on response time can also mean saving lives.

Count on the ALTAIR 4X - Exclusive safety features like MotionAlert and InstantAlert make the ALTAIR 4X Multi-Gas Detector ideal for applications like confined space entry.

The MotionAlert sensor activates when a user becomes disabled and motionless, quickly alerting others to the disabled user's location. And with a simple push of a button, the InstantAlert feature enables users to manually alert others to potentially hazardous situations. The detector comes with a full three-year warranty, so you can depend on the ALTAIR 4X Multi-Gas Detector to withstand the wear and tear that other portable gas detectors can't.


Approvals & Standards

USA:

CSA Class I, Division 1, Groups A, B, C & D
ETL Class II, Division 1, Groups E, F & G/ Class III, Division 1

Europe:

Directive 94/9/EC (ATEX):
II 1G Ex ia IIC T4 (Zone 0 with no combustible sensor installed)II 2G Ex ia d IIC T4 (Zone 1 with combustible sensor installed)/CE 0080

Australia/New Zealand:

TestSafe Australia Ex ia s IIC T4 (Zone 0)
IECEx: TestSafe Australia Ex ia IIC T4
(Zone 0 with no combustible sensor installed)
Ex ia d IIC T4
(Zone 1 with combustible sensor installed)

Applications

  Authorities
  Chemical
  Fire Fighting
  Mining
  Oil & Gas
  Pharmaceuticals
  Waste & Water Treatment

Hazards

  Combustible Atmosphere
  Ex
  Ox
  Oxygen Deficiency
  Tox
  Toxic Atmosphere (IDLH)
  Toxic Atmosphere (Non-IDLH)


Data Sheet
Manual


Powerpoint Presentation

Ordering Information


ALTAIR 4X

With quick-start card, data logging, charger, calibration cap and tubing

10110453 LEL, O2, CO, H2S Charcoal
10110456 LEL, O2, CO, H2S Phosphorescent
10126261 LEL, O2, CO, H2S-LC Charcoal
10146853 LEL, O2, H2S-LC, SO. Charcoal
10146839 LEL, O2, CO, NO. Charcoal
10110454 LEL, O2, CO Charcoal
10110458 LEL, O2 Phosphorescent

Calibration Gas

10053022 Gas Can (58L), 1.45% CH2, 15% O2, 20 H2S, 60 CO
10122425 Gas Can (34L), 1.45% CH2, 15% O2, 60 CO, 20 H2S, 10 SO2
10143308 Gas Can (34L), 1,45% CH2, 15% O2, 60 CO, 10 NO2

Replacement Sensors

10106722 XCell EX combustible sensor
10121211 XCell EX-H combustible sensor
10121212 XCell EX-M combustible sensor
10106729 XCell O2 sensor
10106725 XCell CO/H2S two-tox sensor
10121214 XCell CO H2 RES/H2S- two-tox sensor
10121213 XCell CO/H2S-LC two-tox sensor
10121217 XCell CO/NO2 two-tox sensor
10121215 XCell SO2/H2S-LC two-tox sensor

GALAXY GX2 Automated Test System

10128651 GALAXY GX2, ALTAIR 4/4X, 1 Valve
10128640 GALAXY GX2, ALTAIR 4/4X, 4 Valve
10128639 GALAXY GX2, ALTAIR 4/4X, Charging, 1 Valve
10128638 GALAXY GX2, ALTAIR 4/4X, Charging, 4 Valve
10105756 Smart Electronic Cylinder Holder w/ integrated DFR

Accessories

10152668 ALTAIR Pump Probe (European charger included)
10153040 ALTAIR Pump Probe (without charger)
10127423 Vertical Multi-Unit Charger for four ALTAIR 4X
10095774 Vehicle charger
10088099 MSA Link Software CD-ROM
10082834 JetEye IR Adapter with USB connector



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
