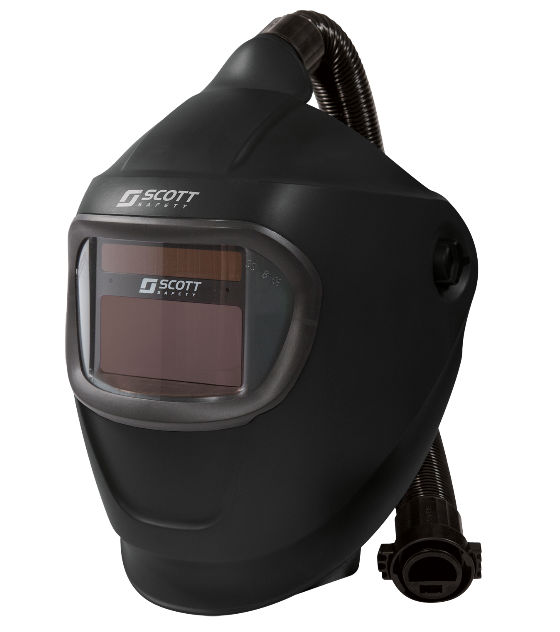

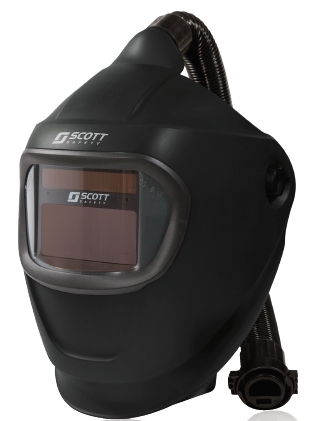

3M Scott Safety FH4 Welding Headtop

3M Scott Safety FH4 Welding Headtop

Designed for use in welding applications, the 3M Scott Safety FH4 Welding Headtop is specifically suitable for those seeking both respiratory and face protection.

Key Features

  • Stylish and modern
  • Lightweight & comfortable with fully adjustable ratchet headgear
  • Available with a choice of ADFs- 2500V & 5500V
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

  • • Available with hose options: PU stretch, EPDM (standard & long versions)
  • • Available with Tornado & Proflow 160 PAPR (Proflow 120 l/min users can upgrade to 160l/min via service centre

The FH4 is suitable for a variety of welding applications whilst offering a comfortable lightweight solution. The headtop offers two distinct features that will allow the wearer ease of use and comfort. The new Scott ratchet mechanism allows the wearer to secure the headtop in place and ensures an easy customisable fit, whilst the head cradle is pivotable allowing the user to "flip up" the visor after welding. This visor can be securely locked in the upright position if required and pulled down in one simple movement.

FH4 is designed to allow the user to easily set personal parameters to ensure maximum comfort in usage, hence creating their own personal headtop.

Available with a choice of ADFs the FH4 integrates a user friendly ADF replacement mechanism. The user can opt for an ADF version with manual or digital operating function, yet both allow the wearer to set their shade parameter preferences according to their individual needs. The premium 5500V ADF version also offers a grinding mode. There is no requirement for battery replacement resulting in less downtime and increased productivity.

The system enables superb fit for all head shapes and sizes, complimented by the comfort pad that fits below the occipital bone and soft, pliable materials that fit around the face contours. FH4 allows simple adjustment once donned, the ratchet can be tightened via the hand wheel, while side buttons allow forward and backward adjustment to provide optimal fit.

The FH4 head top is part of the 3M Scott Safety modular Powered Air Respirator (PAPR) system and is fully compatible with the Proflow 160l/min (note the FH4 welding headtop is not approved for use with the standard Proflow 120l/min version) and Tornado powered respirators. So whatever your welding application, there is a 3M Scott Safety respiratory solution to suit your needs. The FH4 Proflow Ready-Pak offers a ready to go welding respiratory solution; in one handy reusable container you get all you need to start work rights away.

*Existing Proflow 120l/min users can have their units upgraded to 160l/min by an approved service centre for use with the FH4 headtop only (not other Scott Safety headtops). Please also note that once upgraded, the Proflow 160 l/min unit is approved only with the following filters: PSL, A-PSL & ABEK-PSL.

HEADTOPS WITH HOSE
  • 2026674 FH4 WELDING HEADTOP including TOR/PROFLOW stretch PU hose

  • 2026682 FH4 WELDING HEADTOP including TOR/PROFLOW EPDM hose

  • 2028372 FH4 WELDING HEADTOP including TOR/PROFLOW longer EPDM hose


HEADTOP WITH HOSE & 2500V ADF
  • 2026978 FH4 WELDING HEADTOP including TOR/PRO stretch PU hose & 2500V ADF

  • 2026986 FH4 WELDING HEADTOP including TOR/PRO EPDM hose & 2500V ADF

  • 2028376 FH4 WELDING HEADTOP including TOR/PRO longer EPDM hose & 2500V ADF


HEADTOP WITH HOSE & 5500 ADF
  • 2027013 FH4 WELDING HEADTOP including TOR/PRO stretch PU hose & 5500V ADF

  • 2027021 FH4 WELDING HEADTOP including TOR/PRO EPDM hose & 5500V ADF

  • 2028380 FH4 WELDING HEADTOP including TOR/PRO longer EPDM hose & 5500V ADF

PROFLOW READYPAKS
  • 2027028 FH4 Welding headtop, Proflow 160 blower with comfort belt, PF10 filters, 2500V ADF, Hose sleeve, PU stretch hose

  • 2027058 FH4 Welding headtop, Proflow 160 blower with comfort belt, PF10 filters, 2500V ADF, Hose sleeve, EPDM hose

  • 2027053 FH4 Welding headtop, Proflow 160 blower with comfort belt, PF10 filters, 2500V ADF, Hose sleeve, Longer EPDM hose

FH4 ACCESSORIES
  • 2027321 Neck cape

  • 2027322 Head cape

  • 2026605 Scott 2500V ADF Western Europe

  • 2026609 Scoot 5500V ADF Western Europe

  • 2028479 Flame retardant hose cover

  • 2027789 Spatter guard (10 pack)
