Analox 5S MkIII Carbon Dioxide Sensor

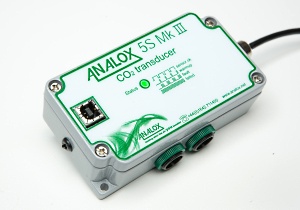

An OEM carbon dioxide transducer, the Analox 5S MkIII is supplied housed in an aluminium enclosure. The Analox 5S MkIII has a five wire connection with 8 to 36v DC input and a 0 to 2v or 4-20mA output.

The Analox 5S MkIII is supplied with a flow adaptor to allow sample gas to be passed over the infra-red bench.

  Enhanced design: Featuring an improved dual beam sensor for additional stability.

  Pressure sensor: The 5S Mk III now includes an onboard, barometric pressure sensor compensating for the effect of atmospheric pressure.

  Versatile: Customised versions are available for specific markets such as diving analysers, industrial process monitoring and gas analysis. OEM versions are also available.



Datasheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
