Please note - this product is now obsolete. Please click here for the current models.

  6400 Visible (320 to 1100nm)

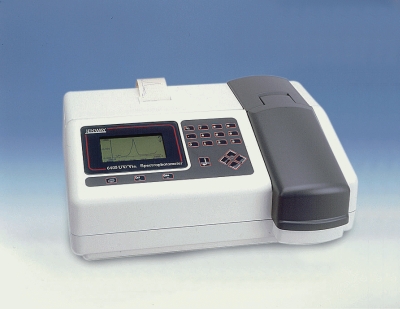

  6405 UV/Visible (190 to 1100nm)
  Single beam scanning units
  Easy to use keypad operation
  5nm bandpass
  Wide range of accessories

The 64 series scanning units are ideal for all routine teaching, laboratory and research environments. Modes are available for photometrics, spectrum, kinetics, multi-wavelength analysis and quantitation* using standard curve methods. These units have full scanning capability with three scan speeds and intervals, baseline correction, instant display of scan, automatic axis scaling, peak and valley data display and capacity to store two scans.

Sample flexibility is a key feature, with cells from 100mm path length down to micro sample capacity being readily accommodated. To further increase flexibility a wide range of accessories are also available.

* Requires 8 cell changer accessory

Data Sheet
Manual

Instruments

640 001 - 6400 visible, scanning spectrophotometer supplied with pack 100 disposable cuvettes and mains lead (230V/50Hz)
640 501 - 6405 UV/visible, scanning spectrophotometer supplied with pack 100 disposable cuvettes and mains lead (230V/50Hz)

Cell Holders

646 001 - Universal test tube holder for 6400/6405 (P)
646 002 - Universal test tube holder for 6400/6405 (F)
630 005 - Universal cuvette holder, 10 to 100mm path length (F)
634 001 - 4 position cuvette holder (6400/6405 only)
644 001 - Eight-position motorised cuvette changer (P)
644 002 - Eight-position motorised cuvette changer (F)
644 003 - Eight-position rack for 10mm cuvettes
644 103 - Eight-position rack for 40mm cuvettes
644 203 - Eight-position rack for 50mm cuvettes
645 001 - Vacuum pump (P)
645 002 - Vacuum pump (F)
630 304 - Micro-cuvette holder with reduced aperture

Heated Cell and Sipper Pump Options

642 001 - Sipper pump (P)
642 002 - Sipper pump (F)
633 001 - Heated cuvette system (cuvette holder and external control unit), supplied with interconnection cables and mains cables (EU, UK and USA)
648 001 - Water heated single cuvette holder
649 001 - Eight-position water jacketed cuvette holder (for 10mm cuvettes)*
643 001 - Peltier heated cuvette system comprising heated cuvette block and external power supply module (230V/50Hz) (P)
643 002 - Peltier heated cuvette system comprising heated cuvette block and external power supply module (230V/50Hz) (F)
647 001 - Temperature controlled sipper system (230V/50Hz) (P)
647 002 - Temperature controlled sipper system (230V/50Hz) (F)
037 201 - Water bath and circulator, ambient +5 to 50°C for use with 648 001 and 649 001 (230V/50Hz)
