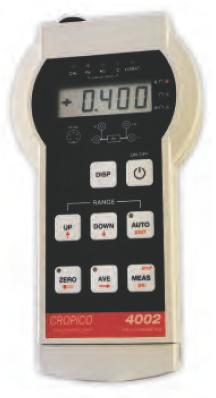

Cropico DO4002 Micro Ohmmeter



The hand-held DO4002, like its sister product the 4000, allows you resistance testing on the move,without compromising on accuracy.

No wires, no fuss.

The portable appliance allows you to view the measured values clearly on a large LCD screen so it's easy to read. Not only that, but the clear keyboard means it's straight forward to use too. And you can work consistently on the go thanks to rechargeable batteries with automatic power off to give you the best possible battery performance.

Choose from automatic or manual range selection. Advanced features include: Long scale length 4000 count and auto average of forward and reverse current measurement.

Key Features

  True 4 terminal measurement eliminates lead resistance errors
  Wide measuring range 4mOhm...400Ohm
  1amp measuring current
  Auto/manual range selection
  Enhanced accuracy with Auto average of forward and reverse measurements
  True zero button
  Digital calibration
  Rechargeable battery operation
  Auto power off to maximise battery life
  MEIgAN compliant


Data Sheet

Specifications

Display:

15mm LCD 4000 count with automatic decimal point and polarity indication

Ranges:

6 ranges, with manual or automatic range selection. LED indication of measurement units

Average:

Automatic average and display of measurement offsets

Zero:

Zero button to null measurement offsets

Calibration:

Digital pass code protected

Protection:

415Vrms maximum at terminals will blow internal protection fuse

Battery:

Removable battery pack with 5 1.5Volt non-rechargeable batteries. Separate rechargeable battery pack, charger and docking station are available options.

Terminals:

4mm safety sockets

Working temperature:

0....40 Celsius rel. humidity 80% max. non condensing

Safety:

EN61010-1 EMC-EN661326

Dimensions:

215 x 130 x 55mm (HWD)

Mass:

0.8kg

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
