Earth bars
|
Description |
Length |
Width |
Height |
Weight each |
Part no |
6 way |
400mm |
90mm |
90mm |
1.80kg |
LK245-6 |
8 way |
500mm |
90mm |
90mm |
2.20kg |
LK245-8 |
10 way |
650mm |
90mm |
90mm |
2.80kg |
LK245-10 |
12 way |
750mm |
90mm |
90mm |
3.20kg |
LK245-12 |
14 way |
850mm |
90mm |
90mm |
3.60kg |
LK245-14 |
16 way |
950mm |
90mm |
90mm |
4.00kg |
LK245-16 |
18 way |
1050mm |
90mm |
90mm |
4.40kg |
LK245-18 |
20 way |
1200mm |
90mm |
90mm |
5.00kg |
LK245-20 |
22 way |
1300mm |
90mm |
90mm |
5.40kg |
LK245-22 |
24 way |
1400mm |
90mm |
90mm |
5.80kg |
LK245-24 |
26 way |
1500mm |
90mm |
90mm |
6.20kg |
LK245-26 |
28 way |
1650mm |
90mm |
90mm |
6.90kg |
LK245-28 |
30 way |
1750mm |
90mm |
90mm |
7.30kg |
LK245-30 |
Earth bars with single disconnecting link
|
Description |
Length |
Width |
Height |
Weight each |
Part no |
6 way |
475mm |
90mm |
96mm |
2.30kg |
LK23-6 |
8 way |
575mm |
90mm |
96mm |
2.70kg |
LK23-8 |
10 way |
725mm |
90mm |
96mm |
3.30kg |
LK23-10 |
12 way |
825mm |
90mm |
96mm |
3.70kg |
LK23-12 |
14 way |
925mm |
90mm |
96mm |
4.10kg |
LK23-14 |
16 way |
1025mm |
90mm |
96mm |
4.50kg |
LK23-16 |
18 way |
1125mm |
90mm |
96mm |
4.90kg |
LK23-18 |
20 way |
1175mm |
90mm |
96mm |
5.50kg |
LK23-20 |
22 way |
1375mm |
90mm |
96mm |
5.90kg |
LK23-22 |
24 way |
1475mm |
90mm |
96mm |
6.30kg |
LK23-24 |
26 way |
1575mm |
90mm |
96mm |
6.70kg |
LK23-26 |
28 way |
1725mm |
90mm |
96mm |
7.40kg |
LK23-28 |
30 way |
1825mm |
90mm |
96mm |
7.80kg |
LK23-30 |
Earth bars with twin disconnecting links
|
Description |
Length |
Width |
Height |
Weight each |
Part no |
6 way |
550mm |
90mm |
96mm |
2.80kg |
LK207-6 |
8 way |
650mm |
90mm |
96mm |
3.20kg |
LK207-8 |
10 way |
800mm |
90mm |
96mm |
3.80kg |
LK207-10 |
12 way |
900mm |
90mm |
96mm |
4.20kg |
LK207-12 |
14 way |
1000mm |
90mm |
96mm |
4.60kg |
LK207-14 |
16 way |
1100mm |
90mm |
96mm |
5.00kg |
LK207-16 |
18 way |
1200mm |
90mm |
96mm |
5.40kg |
LK207-18 |
20 way |
1350mm |
90mm |
96mm |
6.00kg |
LK207-20 |
22 way |
1450mm |
90mm |
96mm |
6.40kg |
LK207-22 |
24 way |
1550mm |
90mm |
96mm |
6.80kg |
LK207-24 |
26 way |
1650mm |
90mm |
96mm |
7.20kg |
LK207-26 |
28 way |
1800mm |
90mm |
96mm |
7.90kg |
LK207-28 |
30 way |
1900mm |
90mm |
96mm |
8.30kg |
LK207-30 |
Accessories
|
Description |
Length |
Width |
Height |
Weight each |
Part no |
Swan-neck link |
400mm |
50mm |
36mm |
0.42kg |
LK2004 |
Disconnecting link |
125mm |
90mm |
90mm |
0.59kg |
LK205 |
|  |
|
|
Recommended fixing - roundhead woodscrew 1 1/2" x no.16 and wall plug. All the above products consist of 50 x 6mm copper bar.
Furse
can offer a range of earth bars manufactured to your individual
requirements. Contact the sales office for further information.

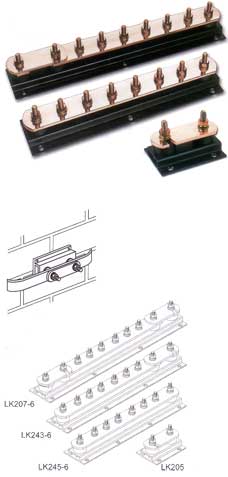

Earth bars and disconnecting links
|
|
|
