How to apply earthing equipment

Earth Rods

furse


Copperbond rod


Diameter

Length

Weight each

Part no
9.0mm
1200mm
0.62kg
RB005
12.7mm
1200mm
1.18kg
RB103
12.7mm
1500mm
1.55kg
RB107
12.7mm
1800mm
1.76kg
RB116
12.7mm
2400mm
2.36kg
RB126
14.2mm
1200mm
1.53kg
RB203
14.2mm
1500mm
1.88kg
RB123
14.2mm
1800mm
2.29kg
RB216
14.2mm
2000mm
2.51kg
RB217
14.2mm
2100mm
2.68kg
RB223
14.2mm
2400mm
3.00kg
RB226
14.2mm
3000mm
3.79kg
RB236
17.2mm
1200mm
2.19kg
RB306
17.2mm
1500mm
2.73kg
RB313
17.2mm
1800mm
3.27kg
RB316
17.2mm
2000mm
3.64
RB317
17.2mm
2100mm
3.83kg
RB323
17.2mm
2400mm
4.35kg
RB326
17.2
3000mm
5.44kg
RB336



Unthreaded copperbond earth rods

Furse copperbond earth rods probably offer to the installer the best and most economical earth rods available. They are made by molecularly bonding 99.9% pure electrolytic copper onto a low carbon steel core. Furse rods are not of the sheathed type. They are highly resistant to corrosion, and because the steel used has a very high tensile strength, they can be driven by power hammers to great depths.

The counter-bored couplings are made from high copper content alloy, commercial brass is not used. This again ensures excellent corrosion resistance and high strength.

Type

Weight

Part no

12.7mm Coupling
0.09kg
CG177
14,7mm Coupling
0.08kg
CG277
17.2mm Coupling
0.13kg
CG377
12.7mm Driving head
0.25kg
ST107
14.2mm Driving head
0.22kg
ST207
17.2mm Driving head
0.27kg
ST307

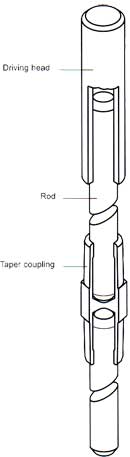

Unthreaded copperbond earth rods

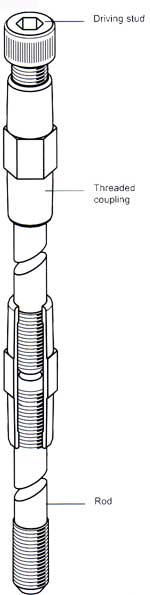

Threaded copperbond earth rods

Normal diameter

Length

Thread diameter 'B'

Shank diameter 'A'
Weight each
Part no
1/2"
1200mm
9/16"
12.7mm
1.18kg
RB105
1/2"
1500mm
9/16"
12.7mm
1.55kg
RB110
1/2"
1800mm
9/16"
12.7mm
1.76kg
RB115
1/2"
2400mm
9/16"
12.7mm
2.36
RB125
5/8"
1200mm
5/8"
14.2mm
1.53kg
RB205-FU
5/8"
1500mm
5/8"
14.2mm
1.88kg
RB210
5/8"
1800mm
5/8"
14.2mm
2.29kg
RB215
5/8"
2100mm
5/8"
14.2mm
2.51kg
RB220-FU
5/8"
2400mm
5/8"
14.2mm
3.00kg
RB225
5/8"
3000mm
5/8"
14.2mm
3.79kg
RB235
3/4"
1200mm
3/4"
17.2mm
2.19kg
RB305
3/4"
1500mm
3/4"
17.2mm
2.73kg
RB310
3/4"
1800mm
3/4"
17.2mm
3.27kg
RB315
3/4"
2400mm
3/4"
17.2mm
4.35kg
RB235
3/4"
3000mm
3/4"
17.2mm
5.44kg
RB235

Fittings

Type

Weight

Part no

1/2" Coupling
0.09kg
CG170
5/8" Coupling
0.08kg
CG270
5/8" Coupling
0.13kg
CG370
1/2" Driving stud
0.05kg
ST100
5/8" Driving stud
0.08kg
ST200
3/4" Drving stud
0.12kg
ST300

BS 7430, BS 6651, UL467

pdf
Earth rods
