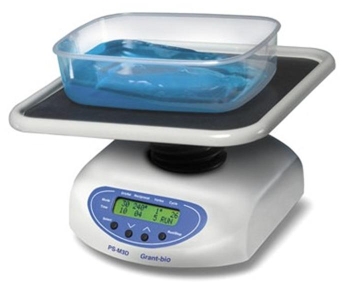

Grant Bio PS-M3D 3D Multi-Function Rotator


Ideally sized for personal use, the Grant Bio PS-M3D multifunction rotator provides all that is required for thorough mixing in flasks, dishes, petri dishes and boxes:

  3D rotation - creating long wave motion, best for mixing large particles
  Reciprocal 3D rotation - creating long and medium wave motion, best for mixing medium and large particles
  Vibration - short wave motion, best for mixing small particles

All actions may be set for continuous or timed operation, and individual phases may be linked together for absolute operational flexibility.

Suitable for mixing applications in many different fields, with specific applications including: immuno precipitations and other affinity matrix applications, treatment of adherent tissue culture in small volumes, e.g. for trypsinisation, gel staining and destaining, antibody staining, washes, hybridisations, Southern blots, western blots, in situs.

  3D rotatio, reciprocation and vibration functions all in one product
  3D rotation speed: 5 to 30 rpm
  Reciprocal 3D rotation: 1 to 360 degrees turning angle
  Vibration: 1 to 6 degrees turning angle, programmable in a burst of 1 to 5 seconds
  Fully programmable sequence of functions
  Loads up to 1.0 kg
  Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display
  Compact, with a low profile and small footprint, and extremely quiet in operation - fits neatly and unobtrusively into the workspace
  Smooth, non-slip mat supplied as standard - prevents vessels from slipping
  All actions - rotation, reciprocation and vibration - can be set for continuous or timed operation, or linked together in different combinations to ensure optimum mixing conditions for your application
  Reliable stepper motor and sturdy construction will deliver years of consistent performance
  Ambient operating temperature range of 4 to 45 degC allows use in cold room or incubator.



Data Sheet

Ordering Information


Multi-function 3D rocker-rotator-vibrator with reciprocation, fixed angle, 1 to 99 rpm, 1kg load, flat platform with non-slip mat included PS-M3D

Mat dimpled to hold many different tube sizes for PMR-30, PS-3D and PS-M3D PDM



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
