Techne Sample Concentrators

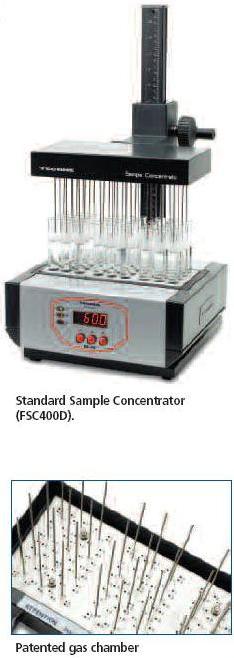

Techne Sample Concentrators (FSC400D & FSC496D)

The Techne Sample Concentrator accelerates the concentration of large numbers of samples in a matter of minutes, where traditional methods can take hours. It is ideal for the life science researcher and chemist alike designed for applications such as sample preparation, drug screening, hormone assays, chromatographic analysis and scintillation counting.

Techne Sample Concentrators Key Features

  • Fast evaporation of solvents from any sample vessel
  • The unit is light and compact enough for convenient use in a fume cupboard when toxic solvents are being evaporated.
  • The needles are made from high quality stainless steel and are specially designed for use with the Techne Sample Concentrator. When corrosive solutions are being used, PTFE coated needles are available.
  • The Sample Concentrator's gas reservoir is mounted on a fully adjustable stand for accurate height control.
Get a Quote
Techne

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Evaporation is increased by passing an inert gas over the surface of the sample to remove any evaporated solvent molecules, maintaining the concentration gradient. The gas travels through the unique patented gas chamber to the samples via the needles. The needles are inserted into a silicone matrix and can be spaced to fit varying combinations of tubes from 26mm tubes to 0.2ml microcentrifuge tubes.

Maximum gas pressure Must not exceed 2 psi
Maximum vertical travel 320mm
Maximum gas usage 15 litres minute
Gas Any inert gas (often nitrogen)
Gas intake nozzle diameter 6.35mm (quarter inch)
Needle position Variable to suit Techne Dri-Blocks
Dimensions L x W x H (mm) 295 x 240 x 530
Shipping weight (gas chamber and stand) 5kg




FSC400D Sample Concentrator gas reservoir and stand (for tubes)
FSC496D Sample Concentrator gas reservoir and stand (for 96-wells)

Accessories

F7209 Pack of 100 needles, 76mm long
F7210 Pack of 100 needles, 127mm long
FSC4NCS Pack of 100 PTFE coated needles, 76mm long
FSC4NCL Pack of 100 PTFE coated needles, 127mm long
F4466 Plastic spacers for FSC496D Sample Concentrator (pack of 2)
6101604 Replacement gas chamber sealing pad
