Carbolite FST & FZS Split Tube Furnaces (up to 1300°C)

The Carbolite FST & FZS Split Tube Furnaces (up to 1300°C) can be used either vertically or horizontally and have a maximum operating temperature of 1300 °C.

Key Features

  • 1300 °C maximum operating temperature
  • Carbolite Gero 3216CC controller, with single ramp to setpoint & process timer
  • 3-zone models fitted with 1 x 3216CC and 2 x 3216CC end zone controllers, with retransmission of setpoint
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

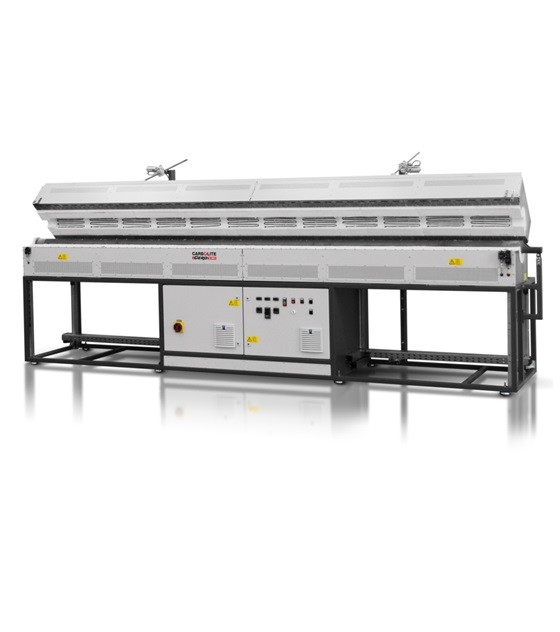

The split heating module allows either easy positioning of the work tube or positioning around reactors which have fixed end flanges. The split design may also allow faster cooling of the sample. Cooling channels are engineered into the housing to aid with convection cooling of the outer case. A handle is attached to the upper half of the split tube furnace with two quick-release clamps to safely unlock and lock the furnace.

The two furnace halves are ceramic fibre modules with high quality APM wire heating elements mounted in the insulation, held in position by a ceramic holding ridge. A safety switch protects the operator by switching off the heating elements once the furnace is opened.

Customized versions and a comprehensive range of tube furnace accessories complete the available options.

Standard features

  • • Accepts work tubes with outer diameter up to 150 mm
  • • Single-zone heated lengths of 200, 500 or 1000 mm
  • • 3-zone heated lengths of 500 or 1000 mm
  • • Split design allows work tubes or reactors with fixed flanges to be accommodate
  • • For horizontal or vertical use
  • • Exceptionally long life time and temperature stability
  • • High grade type S thermocouple
  • • Low thermal mass ceramic fibre insulation
  • • High quality 5 mm APM wire heating elements
  • • Supplied with separate control box with 3 m cable, plug and socket

Options (specify these at time of order)

  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • Wide choice of tube diameters and materials is available
  • • For split tube furnaces, robustly shaped ceramic half tubes are available to protect the heating elements and for sample holding
  • • 'L'stand for vertical and/or horizontal use
  • • Insulation plugs & radiation shields to prevent heat loss & improve uniformity

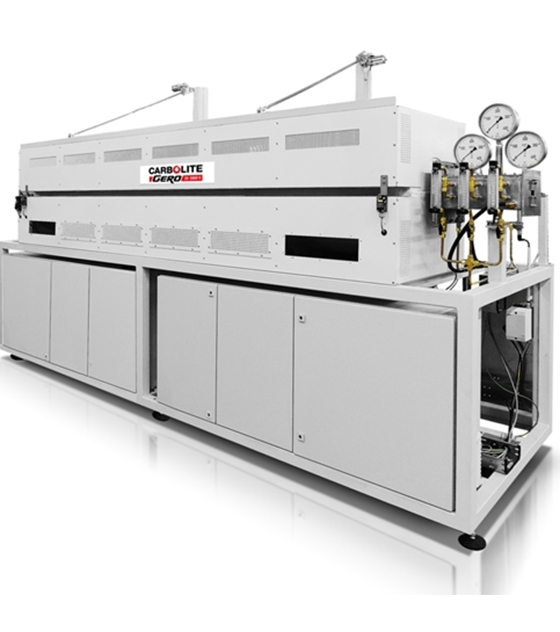

  • • Modified atmosphere and vacuum packages are available
  • • Vacuum packages with a choice of rotary vane pump or turbomolecular pump are available
  • • Larger tube diameters
  • • Longer heated lengths
  • • Automated opening mechanism
  • • Flanges for inert gas counter flow
  • • Oxygen sensor for inert gas packages

Models
  • 00042055 FST 13/40/200

  • 00042056 FST 13/70/500

  • 00042057 FST 13/100/500

  • 00042058 FST 13/100/1000

  • 00042059 FST 13/150/1000

  • 00042060 FZS 13/70/500

  • 00042061 FZS 13/100/500

  • 00042062 FZS 13/100/1000

  • 00042063 FZS 13/150/1000
