The Carbolite HST & HZS Horizontal Split Tube Furnaces use free radiating wire elements embedded within the insulation of the furnace body.

Key Features

  • 1200°C maximum operating temperature
  • Carbolite Gero 301 controller, with single ramp to set-point & process timer
  • Accepts worktubes with outer diameters up to 110 mm
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The benefit of this design is its flexibility; with the use of tube adapters the same furnace can be used with a variety of tube diameters.

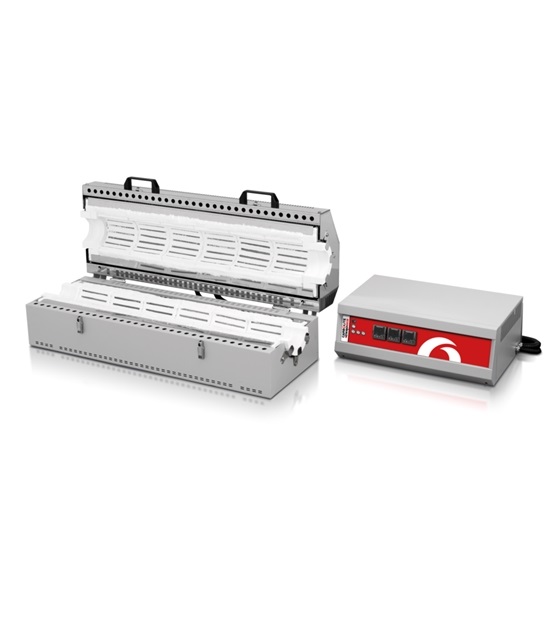

These furnaces comprise a furnace body which is hinged and split into two halves along its length. This makes exchange of work tubes easier and also enables the tube furnace to be used with reactors or work tubes where end flanges would make insertion into a non-split furnace difficult.

This range of tube furnaces does not include an integral work tube and one must be selected as an additional item. The work tube length is dependent on the application, for example, for use with modified atmosphere or vacuum. The use of a separate work tube has the advantage of protecting the heating elements from damage or contamination.

The HZS three zone tube furnaces offer excellent uniformity which results from division of the heated length into three zones, each with its own controller and thermocouple.

Standard features

  • • Heated lengths, single zone 200, 300, 400, 450, 600 or 900 mm (HST)
  • • Heated lengths, 3-zone 600 or 900 mm (HZS)
  • • Horizontal furnace with a separate control module on a 2 metre conduit
  • • Furnace splits into two halves to accommodate work tubes or samples fixed into a test rig
  • • Wire elements in high quality vacuum formed insulation ensure fast heat up, excellent temperature uniformity and short cool down times
  • • HZS: End zone control is via back to back thermocouples
  • • HZS: End zones of 150 mm each end

Options (specify these at time of order)

  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • A range of additional work tubes, end seals and work tube packages is available for use with modified atmosphere and/or vacuum
  • • Vacuum packages with a choice of rotary vane pump or turbomolecular pump are available for furnaces with tube inner diameters of 60 mm and above
  • • Insulation plugs, gas tight end seals and vacuum connections available
  • • Wide choice of tube diameters and materials is available: eg quartz, ceramic, metal
  • • Available with 'L' stand for vertical and horizontal use
  • • Control module on longer 6 metre conduit
  • • HZS: Three equal length zones
  • • HZS: If programmed cooling is required, programmable controllers capable of retransmission of setpoint can be supplied

Models
  • HST120200-208SN HST 12/200 1200°C, Up to 110mmØ x 200mm Heated Length,-SR-Split, single zone Tube Furnace (200 - 210 V-SR-single phase + N)

  • HST120200-230SN HST 12/200 1200°C, Up to 110mmØ x 200mm Heated Length,-SR-Split, single zone Tube Furnace (220 - 240 V -SR-single phase + N)

  • HST120300-208SN HST 12/300 1200°C, Up to 110mmØ x 300mm Heated Length,-SR-Split, single zone Tube Furnace (200 - 210 V-SR-single phase + N)

  • HST120300-230SN HST 12/300 1200°C, Up to 110mmØ x 300mm Heated Length,-SR-Split, single zone Tube Furnace (220 - 240 V -SR-single phase + N)

  • HST120400-208SN HST 12/400 1200°C, Up to 110mmØ x 400mm Heated Length,-SR-Split, single zone Tube Furnace (200 - 210 V-SR-single phase + N)

  • HST120400-230SN HST 12/400 1200°C, Up to 110mmØ x 400mm Heated Length,-SR-Split, single zone Tube Furnace (220 - 240 V -SR-single phase + N)

  • HST120600-208SN HST 12/600 1200°C, Up to 110mmØ x 600mm Heated Length,-SR-Split, single zone Tube Furnace (200 - 210 V-SR-single phase + N)

  • HST120600-208TX HST 12/600 1200°C, Up to 110mmØ x 600mm Heated Length,-SR-Split, single zone Tube Furnace (200 - 210 V -SR-three phase n1 N)

  • HST120600-230SN HST 12/600 1200°C, Up to 110mmØ x 600mm Heated Length,-SR-Split, single zone Tube Furnace (220 - 240 V -SR-single phase + N)

  • HST120600-230TX HST 12/600 1200°C, Up to 110mmØ x 600mm Heated Length,-SR-Split, single zone Tube Furnace (220 - 240 V -SR-three phase n1 N)

  • HST120600-400TN HST 12/600 1200°C, Up to 110mmØ x 600mm Heated Length,-SR-Split, single zone Tube Furnace (380 - 415 V -SR-three phase + N)

  • HST120900-208SN HST 12/900 1200°C, Up to 110mmØ x 900mm Heated Length,-SR-Split, single zone Tube Furnace (200 - 210 V-SR-single phase + N)

  • HST120900-208TX HST 12/900 1200°C, Up to 110mmØ x 900mm Heated Length,-SR-Split, single zone Tube Furnace (200 - 210 V -SR-three phase n1 N)

  • HST120900-230SN HST 12/900 1200°C, Up to 110mmØ x 900mm Heated Length,-SR-Split, single zone Tube Furnace (220 - 240 V -SR-single phase + N)

  • HST120900-230TX HST 12/900 1200°C, Up to 110mmØ x 900mm Heated Length,-SR-Split, single zone Tube Furnace (220 - 240 V -SR-three phase n1 N)

  • HST120900-400TN HST 12/900 1200°C, Up to 110mmØ x 900mm Heated Length,-SR-Split, single zone Tube Furnace (380 - 415 V -SR-three phase + N)
