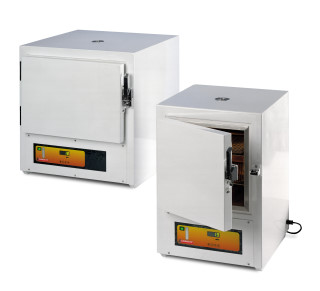

Carbolite HTCR High Temperature Clean Room Ovens

Carbolite HTCR High Temperature Clean Room Ovens

The Carbolite HTCR High Temperature Clean Room Ovens comprises of sixteen standard models with five sizes between 28 and 1000 litres available with maximum temperatures of 400°C, 500°C and 600°C.

Key Features

  • 400°C, 500°C or 600°C maximum operating temperatures
  • 28 to 1000 litre chamber volumes
  • Full sealed low thermal mass insulation to avoid shedding fibres
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Once processed through a customer's standard material entry regime HTCR Ovens are suitable for operation within an ISO 14644-1 Class 6 environment*.

Optionally HTCR ovens can be supplied for operation within an ISO 14644-1 Class 5 environment*.

*Federal Standard 209E Class 1000 was superseded in 2001 by ISO 14644-1 Class 6

*Federal Standard 209E Class 100 was superseded in 2001 by ISO 14644-1 Class 5

Standard features

  • • Fully enclosed brushless fan motor
  • • Carbolite Gero 301 controller, with single ramp to set-point & process timer
  • • Smooth easily cleaned gloss epoxy exterior
  • • Polished stainless steel sealed interior
  • • Perforated stainless steel shelves
  • • Particle free silicone rubber door seal
  • • Membrane control panel with clear bright LED display
  • • Double skin construction ensures safe outer case temperature
  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)

Options (specify these at time of order)

  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • ISO-146441 Class 5 models are optionally available
  • • Access port for independent thermocouple
  • • Cable entry ports
  • • Lockable door
  • • Door switch
  • • Fixed or castor mounted floor stands
  • • Through wall (flange fitted) as well as fully bespoke designs are available
  • • Optional floor stand

Models
  • HTCR4028-208SN HTCR 4/28 400°C, 28 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • HTCR4028-230SN HTCR 4/28 400°C, 28 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • HTCR4095-208SN HTCR 4/95 400°C, 95 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • HTCR4095-230SN HTCR 4/95 400°C, 95 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • HTCR4220-208SN HTCR 4/220 400°C, 220 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • HTCR4220-230SN HTCR 4/220 400°C, 220 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • TMP-HTCR4500-208SN HTCR 4/500 400°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • TMP-HTCR4500-208TX HTCR 4/500 400°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • TMP-HTCR4500-230SN HTCR 4/500 400°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • TMP-HTCR4500-230TX HTCR 4/500 400°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • TMP-HTCR4500-400TN HTCR 4/500 400°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • TMP-HTCR41000-208SN HTCR 4/1000 400°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • TMP-HTCR41000-208TX HTCR 4/1000 400°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • TMP-HTCR41000-230SN HTCR 4/1000 400°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • TMP-HTCR41000-230TX HTCR 4/1000 400°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • TMP-HTCR41000-400TN HTCR 4/1000 400°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • HTCR5028-208SN HTCR 5/28 500°C, 28 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • HTCR5028-230SN HTCR 5/28 500°C, 28 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • HTCR5095-208SN HTCR 5/95 500°C, 95 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • HTCR5095-230SN HTCR 5/95 500°C, 95 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • HTCR5220-208SN HTCR 5/220 500°C, 220 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • HTCR5220-230SN HTCR 5/220 500°C, 220 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • HTCR5220-400TN HTCR 5/220 500°C, 220 litre, ISO 14644-1 Class 6 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • TMP-HTCR5500-208TX HTCR 5/500 500°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • TMP-HTCR5500-230TX HTCR 5/500 500°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • TMP-HTCR5500-400TN HTCR 5/500 500°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • TMP-HTCR51000-208TX HTCR 5/1000 500°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • TMP-HTCR51000-230TX HTCR 5/1000 500°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • TMP-HTCR51000-400TN HTCR 5/1000 500°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • HTCR6028-208SN HTCR 6/28 600°C, 28 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • HTCR6028-230SN HTCR 6/28 600°C, 28 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • HTCR6095-208SN HTCR 6/95 600°C, 95 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • HTCR6095-208TX HTCR 6/95 600°C, 95 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • HTCR6095-230SN HTCR 6/95 600°C, 95 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • HTCR6095-230TX HTCR 6/95 600°C, 95 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • HTCR6095-400TN HTCR 6/95 600°C, 95 litre, ISO 14644-1 Class 6 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • HTCR6220-208SN HTCR 6/220 600°C, 220 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • HTCR6220-208TX HTCR 6/220 600°C, 220 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • HTCR6220-230SN HTCR 6/220 600°C, 220 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • HTCR6220-230TX HTCR 6/220 600°C, 220 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • HTCR6220-400TN HTCR 6/220 600°C, 220 litre, ISO 14644-1 Class 6 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • TMP-HTCR6500-208TX HTCR 6/500 600°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • TMP-HTCR6500-230TX HTCR 6/500 600°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • TMP-HTCR6500-400TN HTCR 6/500 600°C, 500 litre, ISO 14644-1 Class 6 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • TMP-HTCR61000-208TX HTCR 6/1000 600°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • TMP-HTCR61000-230TX HTCR 6/1000 600°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • TMP-HTCR61000-400TN HTCR 6/1000 600°C, 1000 litre, ISO 14644-1 Class 6 Clean Room Oven (380 - 415 V -SR-three phase + N)

Additional Shelves
  • 00413-3-2125-SP Additional Shelf for 28 litre HTCR & HTMA series (2 max)

  • 00414-3-2125-SP Additional Shelf for 95 litre HTCR & HTMA series (4 max)

  • 00415-3-2125-SP Additional Shelf for 220 litre HTCR & HTMA series (4 max)

  • 711008-3108-SP Additional Shelf for 500 litre HTCR & HTMA series (5 max)

  • TMP-HTCR1000SHELF Additional Shelf for 1000 litre HTCR & HTMA series (5 max)
