Carbolite HTF High Temperature Chamber Furnaces Carbolite HTF High Temperature Chamber Furnaces

Carbolite HTF High Temperature Chamber Furnaces

The Carbolite HTF High Temperature Chamber Furnaces havw maximum operating temperatures of 1600 °C, 1700 °C, or 1800 °C. All models are heated by molybdenum disilicide elements.

Key Features

  • 1600 °C, 1700 °C & 1800 °C maximum operating temperatures
  • From 64 to 514 litre capacities
  • Programmable 3216P1 controller
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

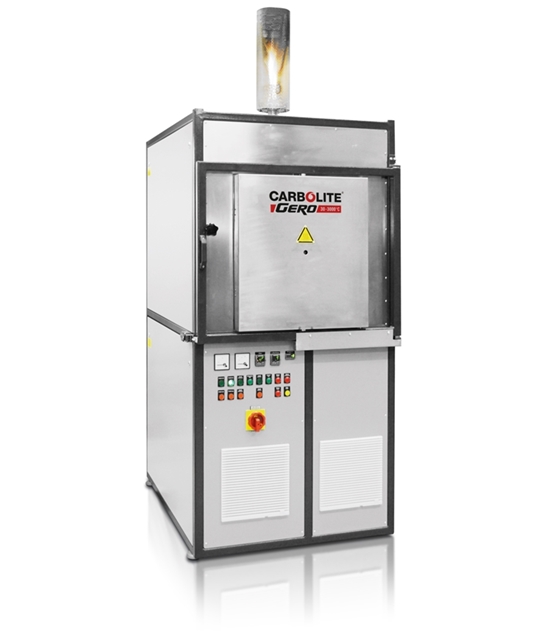

The HTF industrial furnace is available in usable volumes of 64, 128, 165, 250, 332 and 514 litres. Independent over-temperature protection is fitted as standard for unattended operation.

Heat treatment is only possible in air. An additional gas supply, with hand valve and rotameter, can be supplied, which results in a slight modification of the atmosphere that will only suppress the Oxygen level as the system is not sealed. As a result, the HTF is ideal for sintering ceramics and oxide ceramics.

If debinding is required before sintering, Carbolite Gero offers a debinding package for the HTF. The debinding package consists of an inlet for preheated air, several gas inlets, and an afterburner. The preheated air is symmetrically purged at several gas inlets into the furnace, which improves temperature uniformity at low temperatures and sample envelopment by the incoming air. All gaseous by-products generated during the debinding process are combusted in an afterburner that is driven by propane gas and compressed air. On completion of debinding, the furnace temperature will increase to begin the sintering process.

Standard features

  • • Over-temperature protection
  • • High quality molybdenum disilicide heating elements
  • • Advanced refractory interior, used in combination with energy efficient low thermal mass insulation
  • • Side hinged door

Options (specify these at time of order)

  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • Debinding in air with the debinding package
  • • Gas supply with manually adjustable flow meter
  • • Modification of the atmosphere in the furnace chamber can be achieved but oxygen cannot be removed completely because it is not gas tight
  • • Parallel action door keeps heated surface away from the user

Models

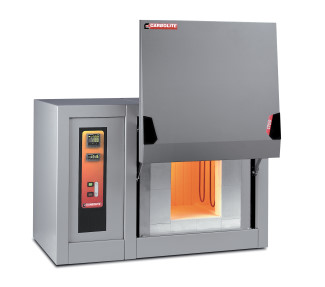

  • HTF1705-208SN HTF 17/5 1700°C, 5 litre, Chamber Furnace (200 - 210 V-SR-single phase + N)

  • HTF1705-230SN HTF 17/5 1700°C, 5 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • HTF1710-208SN HTF 17/10 1700°C, 10 litre, Chamber Furnace (200 - 210 V-SR-single phase + N)

  • HTF1710-230SN HTF 17/10 1700°C, 10 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • HTF1710-400TN HTF 17/10 1700°C, 10 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)

  • HTF1725-208TX HTF 17/25 1700°C, 25 litre, Chamber Furnace (200 - 210 V -SR-three phase n1 N)

  • HTF1725-230TX HTF 17/25 1700°C, 25 litre, Chamber Furnace (220 - 240 V -SR-three phase n1 N)

  • HTF1725-400TN HTF 17/25 1700°C, 25 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)

  • HTF1804-208SN HTF 18/4 1800°C, 4 litre, Chamber Furnace (200 - 210 V-SR-single phase + N)

  • HTF1804-230SN HTF 18/4 1800°C, 4 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • HTF1804-400TN HTF 18/4 1800°C, 4 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)

  • HTF1808-208SN HTF 18/8 1800°C, 8 litre, Chamber Furnace (200 - 210 V-SR-single phase + N)

  • HTF1808-230SN HTF 18/8 1800°C, 8 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • HTF1808-400TN HTF 18/8 1800°C, 8 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)

  • HTF1815-208SN HTF 18/15 1800°C, 15 litre, Chamber Furnace (200 - 210 V-SR-single phase + N)

  • HTF1815-208TX HTF 18/15 1800°C, 15 litre, Chamber Furnace (200 - 210 V -SR-three phase n1 N)

  • HTF1815-230SN HTF 18/15 1800°C, 15 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • HTF1815-230TX HTF 18/15 1800°C, 15 litre, Chamber Furnace (220 - 240 V -SR-three phase n1 N)

  • HTF1815-400TN HTF 18/15 1800°C, 15 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)

  • HTF1827-208TX HTF 18/27 1800°C, 27 litre, Chamber Furnace (200 - 210 V -SR-three phase n1 N)

  • HTF1827-230TX HTF 18/27 1800°C, 27 litre, Chamber Furnace (220 - 240 V -SR-three phase n1 N)

  • HTF1827-400TN HTF 18/27 1800°C, 27 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)

  • HTF18165-208TX HTF 18/165 1800°C, 165 litre, Chamber Furnace (200 - 210 V -SR-three phase n1 N)

  • HTF18165-230TX HTF 18/165 1800°C, 165 litre, Chamber Furnace (220 - 240 V -SR-three phase n1 N)

  • HTF18165-400TN HTF 18/165 1800°C, 165 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)
