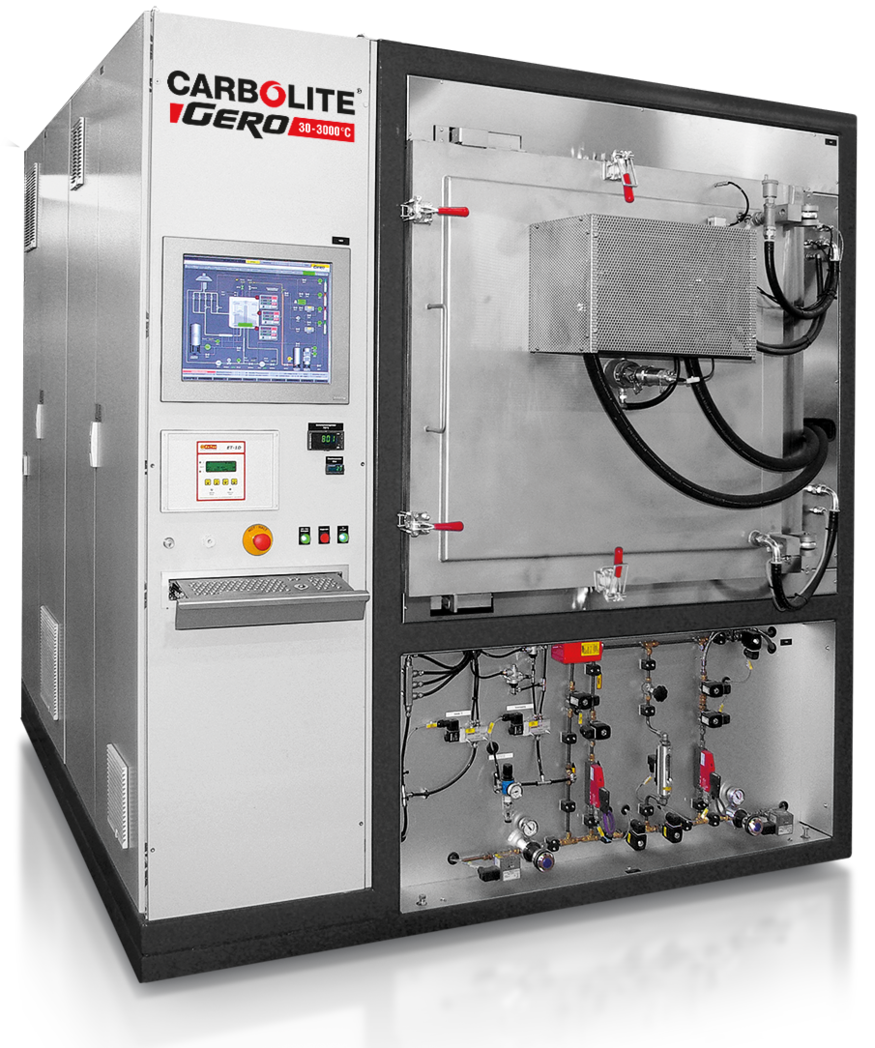

Carbolite HTK KE Chamber Furnace

Carbolite HTK KE Chamber Furnace

The Carbolite HTK KE furnaces are insulated with ceramic fibre.The rectangular design with a front door allows for easy loading and unloading. The HTK range is available in up to six different sizes. The smallest designs with a capacity of 8 litres and 25 litres are typically employed by laboratories for research and development. The 80 litre, 220 litre, 400 litre or 600 litre furnaces are predominantly used as pilot manufacturing systems or large scale production.

Standard Features

  • Hydrogen partial pressure operation if requested
  • Operation under air or with 100 % Oxygen in the HTK KE
  • Precisely controlled vacuum pumping speeds appropriate for powders
  • Data recording for quality management
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The furnaces can be used under a defined Oxygen mixture or 100 % pure Oxygen. The heating elements are CrFeAl, allowing temperatures of up to 1350 °C, or MoSi2 that allow temperatures up to 1800 °C. Inert gas atmospheres are possible; however, poor atmospheric quality must be accepted. Due to the porous nature of the insulation, vacuum operation is limited to a rough vacuum range for short durations.

Application Examples

ceramic injection moulding (CIM), debinding in air, sintering in air

HTK 8 KE/13-1G

Insulation material Ceramic fibre
Volume (l) 8
Tmax vacuum (°C) 1100

HTK 25 KE/13-1G

Insulation material Ceramic fibre
Volume (l) 25
Tmax vacuum (°C) 1100

HTK 80 KE/13-1G

Insulation material Ceramic fibre
Volume (l) 80
Tmax vacuum (°C) 1100

HTK 220 KE/13-1G

Insulation material Ceramic fibre
Volume (l) 220
Tmax vacuum (°C) 1100

HTK 400 KE/13-1G

Insulation material Ceramic fibre
Volume (l) 400
Tmax vacuum (°C) 1100

HTK 600 KE/13-1G

Insulation material Ceramic fibre
Volume (l) 600
Tmax vacuum (°C) 1100
