Carbolite HTMA Controlled Atmosphere Ovens Carbolite HTMA Controlled Atmosphere Ovens

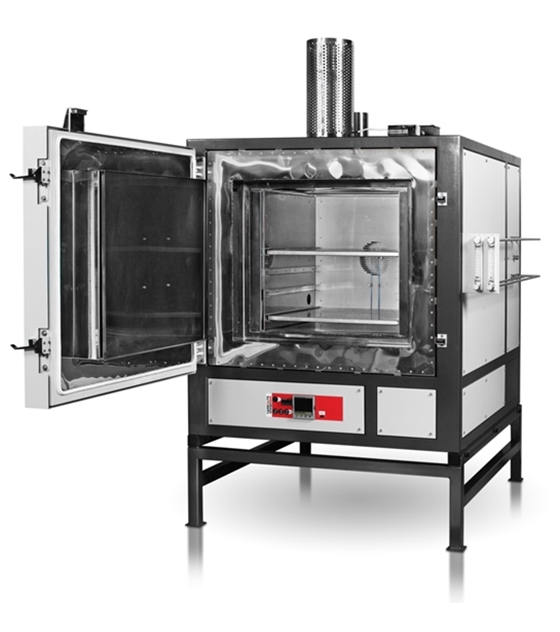

Carbolite HTMA Controlled Atmosphere Ovens

The Carbolite HTMA Controlled Atmosphere Ovens are a range of modified atmosphere high temperature ovens for use with inert atmospheres up to 700°C.

Key Features

  • 400°C, 500°C, 600°C or 700°C operating temperatures
  • 28, 95, 220, 500 & 1000 litre capacities
  • Carbolite Gero 301 controller, with single ramp to set-point & process timer
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Separate flow controls for purge and process gases mean that once the chamber has been purged of atmospheric air process gas can be used with lower flow rates.

Switching between purge and process gases can either be done manually or by adding the option of an automatic programmable control system. Oxygen levels down to 50 ppm are achievable.

Standard features

  • • Rear mounted fan & side air guides give horizontal 'airflow'
  • • Fully seam welded to contain modified atmosphere
  • • Manual gas control via needle valves & flowmeters (nickel brass)
  • • Corrosion resistant stainless steel interior with perforated non-tip shelves & runners
  • • Stainless steel pipe-work, nickel brass flow-meter & solenoid valves
  • • Single side hinged door, with metal heat seal & rubber gas tight seal, closed using non slam handle
  • • Hard wearing, zinc coated & stoved epoxy polyester coated exterior

Options (specify these at time of order)

  • • Automatic gas control (requires a 3508 series programmable controller)
  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • Stainless steel flow-meter & solenoid valves, instead of nickel brass
  • • Fixed or castor mounted floor stands
  • • Flow failure alarm
  • • Oxygen sensor fitted to gas outlet to monitor oxygen level, displayed as ppm (parts per million) or percentage. Only available for use with nanodac instruments

Models
  • HTMA4028-208SN HTMA 4/28 400°C, 28 litre, Modified Atmosphere Oven (200 - 210 V-SR-single phase + N)

  • HTMA4028-230SN HTMA 4/28 400°C, 28 litre, Modified Atmosphere Oven (220 - 240 V -SR-single phase + N)

  • HTMA4095-208SN HTMA 4/95 400°C, 95 litre, Modified Atmosphere Oven (200 - 210 V-SR-single phase + N)

  • HTMA4095-230SN HTMA 4/95 400°C, 95 litre, Modified Atmosphere Oven (220 - 240 V -SR-single phase + N)

  • HTMA4220-208SN HTMA 4/220 400°C, 220 litre, Modified Atmosphere Oven (200 - 210 V-SR-single phase + N)

  • HTMA4220-230SN HTMA 4/220 400°C, 220 litre, Modified Atmosphere Oven (220 - 240 V -SR-single phase + N)

  • HTMA40500-208TX HTMA 4/500 400°C, 500 litre, Modified Atmosphere oven (200 - 210 V three phase no N)

  • HTMA40500-230TX HTMA 4/500 400°C, 500 litre, Modified Atmosphere oven (220 - 240 V three phase no N)

  • HTMA40500-400TN HTMA 4/500 400°C, 500 litre, Modified Atmosphere oven (380 - 415 V three phase + N)

  • HTMA41000-208TX HTMA 4/1000 400°C, 1000 litre, Modified Atmosphere oven (200 - 210 V three phase no N)

  • HTMA41000-230TX HTMA 4/1000 400°C, 1000 litre, Modified Atmosphere oven (220 - 240 V three phase no N)

  • HTMA41000-400TN HTMA 4/1000 400°C, 1000 litre, Modified Atmosphere oven (380 - 415 V three phase + N)

  • HTMA5028-208SN HTMA 5/28 500°C, 28 litre, Modified Atmosphere Oven (200 - 210 V-SR-single phase + N)

  • HTMA5028-230SN HTMA 5/28 500°C, 28 litre, Modified Atmosphere Oven (220 - 240 V -SR-single phase + N)

  • HTMA5095-208SN HTMA 5/95 500°C, 95 litre, Modified Atmosphere Oven (200 - 210 V-SR-single phase + N)

  • HTMA5095-230SN HTMA 5/95 500°C, 95 litre, Modified Atmosphere Oven (220 - 240 V -SR-single phase + N)

  • HTMA5220-208SN HTMA 5/220 500°C, 220 litre, Modified Atmosphere Oven (200 - 210 V-SR-single phase + N)

  • HTMA5220-230SN HTMA 5/220 500°C, 220 litre, Modified Atmosphere Oven (220 - 240 V -SR-single phase + N)

  • HTMA5220-400TN HTMA 5/220 500°C, 220 litre, Modified Atmosphere Oven (380 - 415 V -SR-three phase + N)

  • HTMA50500-208TX HTMA 5/500 500°C, 500 litre, Modified Atmosphere oven (200 - 210 V three phase no N)

  • HTMA50500-230TX HTMA 5/500 500°C, 500 litre, Modified Atmosphere oven (220 - 240 V three phase no N)

  • HTMA50500-400TN HTMA 5/500 500°C, 500 litre, Modified Atmosphere oven (380 - 415 V three phase + N)

  • HTMA51000-208TX HTMA 5/1000 500°C, 1000 litre, Modified Atmosphere oven (200 - 210 V three phase no N)

  • HTMA51000-230TX HTMA 5/1000 500°C, 1000 litre, Modified Atmosphere oven (220 - 240 V three phase no N)

  • HTMA51000-400TN HTMA 5/1000 500°C, 1000 litre, Modified Atmosphere oven (380 - 415 V three phase + N)

  • HTMA6028-208SN HTMA 6/28 600°C, 28 litre, Modified Atmosphere Oven (200 - 210 V-SR-single phase + N)

  • HTMA6028-230SN HTMA 6/28 600°C, 28 litre, Modified Atmosphere Oven (220 - 240 V -SR-single phase + N)

  • HTMA6095-208SN HTMA 6/95 600°C, 95 litre, Modified Atmosphere Oven (200 - 210 V-SR-single phase + N)

  • HTMA6095-208TX HTMA 6/95 600°C, 95 litre, Modified Atmosphere Oven (200 - 210 V -SR-three phase n1 N)

  • HTMA6095-230SN HTMA 6/95 600°C, 95 litre, Modified Atmosphere Oven (220 - 240 V -SR-single phase + N)

  • HTMA6095-230TX HTMA 6/95 600°C, 95 litre, Modified Atmosphere Oven (220 - 240 V -SR-three phase n1 N)

  • HTMA6095-400TN HTMA 6/95 600°C, 95 litre, Modified Atmosphere Oven (380 - 415 V -SR-three phase + N)

  • HTMA6220-208SN HTMA 6/220 600°C, 220 litre, Modified Atmosphere Oven (200 - 210 V-SR-single phase + N)

  • HTMA6220-208TX HTMA 6/220 600°C, 220 litre, Modified Atmosphere Oven (200 - 210 V -SR-three phase n1 N)

  • HTMA6220-230SN HTMA 6/220 600°C, 220 litre, Modified Atmosphere Oven (220 - 240 V -SR-single phase + N)

  • HTMA6220-230TX HTMA 6/220 600°C, 220 litre, Modified Atmosphere Oven (220 - 240 V -SR-three phase n1 N)

  • HTMA6220-400TN HTMA 6/220 600°C, 220 litre, Modified Atmosphere Oven (380 - 415 V -SR-three phase + N)

  • HTMA60500-208TX HTMA 6/500 600°C, 500 litre, Modified Atmosphere oven (200 - 210 V three phase no N)

  • HTMA60500-230TX HTMA 6/500 600°C, 500 litre, Modified Atmosphere oven (220 - 240 V three phase no N)

  • HTMA60500-400TN HTMA 6/500 600°C, 500 litre, Modified Atmosphere oven (380 - 415 V three phase + N)

  • HTMA61000-208TX HTMA 6/1000 600°C, 1000 litre, Modified Atmosphere oven (200 - 210 V three phase no N)

  • HTMA61000-230TX HTMA 6/1000 600°C, 1000 litre, Modified Atmosphere oven (220 - 240 V three phase no N)

  • HTMA61000-400TN HTMA 6/1000 600°C, 1000 litre, Modified Atmosphere oven (380 - 415 V three phase + N)

  • HTMA7095-208TX HTMA 7/95 700°C, Modified Atmosphere Oven

  • HTMA7095-230TX HTMA 7/95 700°C, Modified Atmosphere Oven

  • HTMA7095-400TN HTMA 7/95 700°C, Modified Atmosphere Oven

Additional Shelves
  • 00413-3-2125-SP Additional Shelf for 28 litre HTCR & HTMA series (2 max)

  • 00414-3-2125-SP Additional Shelf for 95 litre HTCR & HTMA series (4 max)

  • 00415-3-2125-SP Additional Shelf for 220 litre HTCR & HTMA series (4 max)

  • 711008-3108-SP Additional Shelf for 500 litre HTCR & HTMA series (5 max)

  • TMP-HTCR1000SHELF Additional Shelf for 1000 litre HTCR & HTMA series (5 max)
