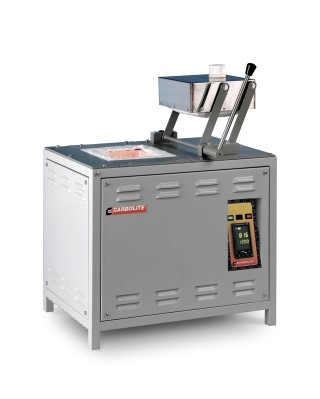

Carbolite VCF Top Loading Chamber Furnaces

Carbolite VCF Top Loading Chamber Furnaces

Carbolite VCF Top Loading Chamber Furnaces are particularly suited for applications involving tall crucibles and heavy components.

Key Features

  • 1200°C maximum operating temperature
  • 5, 10, 23 or 100 litre chamber volume
  • Free radiating wire elements in all 4 sides of chamber
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Heating elements in all four walls minimise the risk of damage from spills and ensures good temperature uniformity. The smaller two furnaces may be benchmounted, but best access is provided when these furnaces are located on the floor.

Standard features

  • • Vented top opening door
  • • Angled control panel, protected but clearly visible
  • • Carbolite Gero 301 controller, with single ramp to set-point & process timer
  • • Thermocouple protected by ceramic sheath

Options (specify these at time of order)

  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications

Models
  • VCF12005-208SN VCF 12/5 1200°C, 5 litre, Top Loading Chamber Furnace (200 - 210 V-SR-single phase + N)

  • VCF12005-230SN VCF 12/5 1200°C, 5 litre, Top Loading Chamber Furnace (220 - 240 V -SR-single phase + N)

  • VCF12010-208SN VCF 12/10 1200°C, 10 litre, Top Loading Chamber Furnace (200 - 210 V-SR-single phase + N)

  • VCF12010-230SN VCF 12/10 1200°C, 10 litre, Top Loading Chamber Furnace (220 - 240 V -SR-single phase + N)

  • VCF12023-208SN VCF 12/23 1200°C, 23 litre, Top Loading Chamber Furnace (200 - 210 V-SR-single phase + N)

  • VCF12023-230SN VCF 12/23 1200°C, 23 litre, Top Loading Chamber Furnace (220 - 240 V -SR-single phase + N)

  • VCF12023-230TX VCF 12/23 1200°C, 23 litre, Top Loading Chamber Furnace (220 - 240 V -SR-three phase n1 N)

  • VCF12023-400TN VCF 12/23 1200°C, 23 litre, Top Loading Chamber Furnace (380 - 415 V -SR-three phase + N)

  • VCF12100-230SN VCF 12/100 1200°C, 100 litre, Top Loading Chamber Furnace (220 - 240 V -SR-single phase + N)

  • VCF12100-230TX VCF 12/100 1200°C, 100 litre, Top Loading Chamber Furnace (220 - 240 V -SR-three phase n1 N)

  • VCF12100-400TN VCF 12/100 1200°C, 100 litre, Top Loading Chamber Furnace (380 - 415 V -SR-three phase + N)
