Low temperature, single channel for Industrial & Clinical analysis
  Sodium & Potassium with Li, Ba & Ca options
  Electronic ignition
  Flame failure safety system
  Fine & coarse sensitivity controls
  Operates on propane, butane, natural gas or L.P.G. supplies

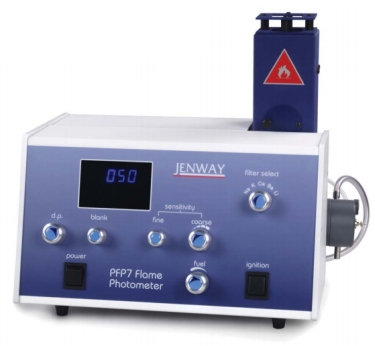

The Models PFP7 and PFP7/C are low temperature, single channel flame photometers designed for the routine determinations of Na & K (Ca, Ba and Li optional). With in-built automatic flame failure detection for user safety these products are ideal for use in clinical, industrial and educational applications.

The Model PFP7/C is specifically designed for use in clinical applications. The in-built lineariser circuitry enables readings of both Na and K at the normal clinical serum concentrations to be displayed directly in mmol/l. Serum samples must be diluted 200:1 or 100:1 prior to presentation to the flame photometer. The Series 7 diluter is available to enable this to be carried out efficiently and accurately.

Data Sheet
Manual

500 701 - Model PFP7 Flame Photometer, digital, fitted with electronic flame fail safe and supplied with Na, K, Li, Ba & Ca filters, connecting hoses and clips, compressor plug, drain trap, fuses and operating/service instructions, for use on 230V 50Hz.

500 731 - Model PFP7 Flame Photometer, digital, fitted with electronic flame fail safe and supplied with Na, K, Li, Ba & Ca filters, connecting hoses and clips, compressor plug, drain trap, fuses and operating/service instructions, for use on 110V 60Hz.

500 801 - Model PFP7/C Flame Photometer, digital, fitted with electronic flame fail safe and supplied with Na, K & Li filters, connecting hoses and clips, compressor plug, drain trap, fuses and operating/service instructions, for use on 230V 50Hz.

500 831 - Model PFP7/C Flame Photometer, digital, fitted with electronic flame fail safe and supplied with Na, K & Li filters, connecting hoses and clips, compressor plug, drain trap, fuses and operating/service instructions, for use on 110V 60Hz.

Accessories

Please note: These products will only operate with the correct type of air compressor and gas regulator, as specified.

535 001 Air compressor (220V/50Hz)
535 002 Air compressor (110V/60Hz)
037 001 Series 7 Diluter (230V/50Hz)
037 002 Series 7 Diluter (110V/60Hz)
500 176 Water separator (small)
500 177 Water separator (large)
500 134 Dust cover
500 172 Minor spares kit
500 173 Major spares kit
500 178 Butane regulator
500 179 Propane regulator
500 180 Natural gas regulator
025 016 Cleaning solution

Clinical Standards (500ml)

025 008 1.00mmol/l Li
025 004 100mmol/l Na/K
025 006 140mmol/l Na / 5mmol/l K
025 007 120mmol/l Na / 2mmol/l K
025 005 160mmol/l Na / 8mmol/l K
025 027 160mmol/l Na / 80mmol/l K

Industrial Standards (500ml)

025 023 1000ppm K
025 024 1000ppm Li
025 025 3000ppm Ba
025 021 1000ppm Na
025 009 1000ppm Ca
