Dehn + Sohne - PHE III Voltage Detectors


PHE III M12 Voltage Detector (Nominal voltages up to 30 kV / 50 Hz)

Safe verification of isolation from supply voltage

  Reliable indication
  Easy to use
  Cost-effective/space-saving transport

Part Numbers

Nominal Voltages up to 30 kV / 50 Hz

  PHE3 3 S - 767 703
  PHE3 6 S - 767 706
  PHE3 10 S - 767 710
  PHE3 20 S - 767 720
  PHE3 30 S - 767 730
  PHE3 3 10 S - 767 711
  PHE3 6 20 S - 767 721
  PHE3 10 30 S - 767 731

Nominal Voltage Ranges up to 30 kV / 50 Hz, switchable

  PHE3 U 3 30 S - 767 733

Nominal Voltage Ranges up to 30 kV / 50 Hz, Test Set

  PHE3 6 20 SL - 767 740
  PHE3 10 30 SL - 767 750

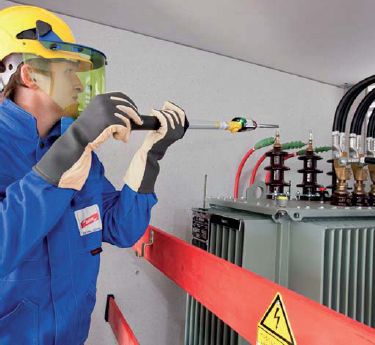

PHE III voltage detector with visual and acoustic indicator used for an indoor switchgear installation

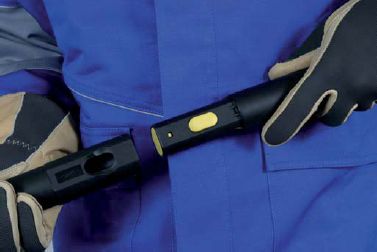

Plugging a HV STK extension handle into an IS PHE STK insulating stick


PHE III ZK Voltage Detector (Nominal voltages up to 30 kV / 50 Hz)

Safe verification of isolation from supply voltage

  Reliable indication
  Easy to use
  Cost-effective/space-saving transport

Part Numbers

Nominal Voltages up to 30 kV / 50 Hz

  PHE3 3 S ZK - 767 903
  PHE3 6 S ZK - 767 906
  PHE3 10 S ZK - 767 910
  PHE3 20 S ZK - 767 920
  PHE3 30 S ZK - 767 930
  PHE3 3 10 S ZK - 767 941
  PHE3 6 20 S ZK - 767 951
  PHE3 10 30 S ZK - 767 961

Nominal Voltage Ranges up to 30 kV / 50 Hz, switchable

  PHE3 U 3 30 S ZK - 767 960

Nominal Voltage Ranges up to 30 kV / 50 Hz, Test Set

  PHE3 6 20 SL ZK - 767 940
  PHE3 10 30 SL ZK - 767 950

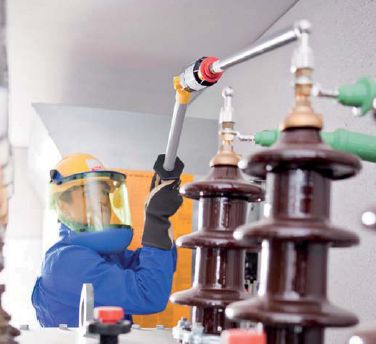

PHE III ZK voltage detector used in an indoor switchgear installation


PHE III ZK Indicator with Test Prod (Nominal voltages up to 30 kV / 50 Hz)

Safe verification of isolation from supply voltage

  Reliable indication with standby function
  Easy to use
  Cost-effective/space-saving transport

Standby function - The PHE III indicator with test prod has a standby function that automa - tically activates the device as soon as contact with energised equipment is made (without previous self-test) and visually and acoustically indicates "voltage present". When making contact with de-energised equipment, the indicator is not activated.

Attention - The PHE III indicator with test prod may only be used in combination with a suitably rated insulating stick from the same equipment range.

Part Numbers

Nominal Voltage Ranges up to 30 kV / 50 Hz, Category "S"

  PHE3 PK6 20 S SB ZK - 767 921
  PHE3 PK10 30 S SB ZK - 767 931

Nominal Voltage Ranges up to 30 kV / 50 Hz, Category "L"

  PHE3 PK6 20 L SB ZK - 767 922
  PHE3 PK10 30 L SB ZK - 767 932



PHE III indicator with test prod, universal gear coupling and insulating stick


PHE III ZK Voltage Detector Kit (Nominal voltage 20 kV / 50 Hz)

Safe verification of isolation from supply voltage

  Reliable indication
  Easy to use
  Multi-purpose kit
  Cost-effective/space-saving transport

Part Numbers

Nominal Voltage 20 kV / 50 Hz, Category "S"

  PHE3S 20 S ZK - 767 724

Nominal Voltage 20 kV / 50 Hz, Category "L"

  PHE3S 20 L ZK - 767 725



PHE III voltage detector with telescopic insulating stick


PHE III M12 / ZK Voltage Detector Kit (Nominal voltage 10 ... 132 kV / 50 Hz)

Safe verification of isolation from supply voltage

  Reliable indication
  Easy to use
  Multi-purpose kit
  Cost-effective/space-saving transport

Part Numbers

Nominal Voltage Range 30 ... 60 kV / 50 Hz, Category "S"

  PHE3S 30 60 S - 767 970

Nominal Voltage Range 30 ... 60 kV / 50 Hz, Category "L"

  PHE3S 30 60 L - 767 975

Nominal Voltage Range 60 ... 110 kV / 50 Hz, Category "S"

  PHE3S2 60 110 S - 767 980

Nominal Voltage Range 60 ... 110 kV / 50 Hz, Category "L"

  PHE3S2 60 110 L - 767 981

Nominal Voltage Range 60 ... 132 kV / 50 Hz, Category "S / L"

  PHE3S2 60 132 SL - 767 982

Nominal Voltage Range 60 ... 132 kV / 50 Hz with Gear Coupling, Category "S / L"

  PHE3S2 60 132 SL ZK - 767 983

Nominal Voltage Range 10 ... 30 kV / 50 Hz and 60 ... 110 kV / 50 Hz, Category "S"

  PHE3S 10 110 S - 767 984

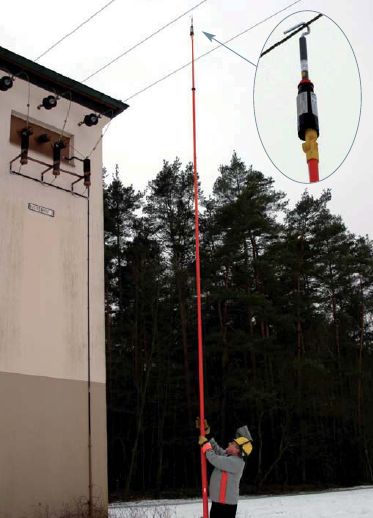

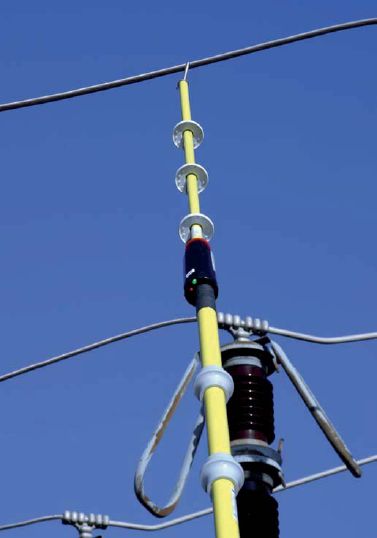

PHE III voltage detector used on a 110 kV outdoor station


Voltage Detectors Brochure

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
