The DO7e is a very rugged yet compact and portable digital
micro ohmmeter for the measurement of low resistance. Key Features
Specifications
Measurement
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
Want A Quotation? © Copyright Cadmus Distribution Group Limited trading as: Keison Products, VoIPon Solutions & 4Gon. We accept the following currencies: GBP (Pound Sterling), EUR (Euros) and USD (United States Dollars).

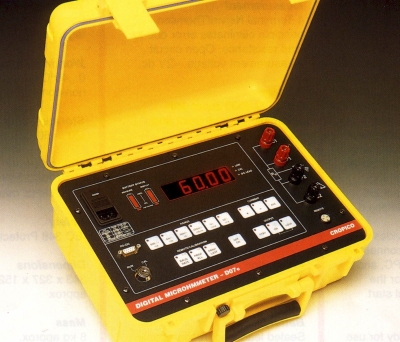

Cropico DO7e Micro Ohmmeter
RUGGED DIGITAL MICRO OHMMETER FOR
LOW RESISTANCE MEASUREMENT
Using a
rechargeable sealed lead acid battery with built-in charger,
the DO7e is capable of measuring with a current of 10 Amps on
the lowest range.
The DO7e has been designed with the latest
solid state and microprocessor techniques to ensure the very
best in measurement, reliability and features.
Automatic range
selection, forward and reverse current measurements with auto
average and a remote start socket are all included as well as an
energy saving power down mode.
True 4 wire measurement eliminates lead resistance
6 push button ranges 6 milli ohm to 600 ohm
Resolution 1 micro ohm on 6 milli ohm range
Auto ranging
10 Amp measuring current on lowest range
0.8" LED Display daylight viewable
Input protection up to 415 Volts rms
Forward and reverse current measurement
Auto average of forward and reverse measurement
Auto power off
Mains / rechargeable battery operation
Digital calibration pass code protected
4 Terminal Kelvin / Thomson principle eliminates errors due to
lead resistance. Open circuit measurement voltage = 2V dc
Display
0.8" LED 6000 count with automatic decimal point and
polarity indication
Ranges
6 push button selected with LED indication
Terminals
Binding posts accept 4mm spade tags, 6mm bare wires and 4mm banana plugs (4mm safety sockets)
Working Temperature
0 degC to 40 degC rel. humidity 80% max. non-condensing
Storage Temperature
-20 to +50 degC
Mains Supply
115/230 volts + 10%-10%
47 to 63 Hz 20VA
Safety
EN 61010-1 EMC - EN 61236
Dimensions
343mm x 327mm x 152mm (W D H) approx
Mass
6kg approx
Protection
415 Vrms maximum at input terminals
Calibration
Digital pass code protected
Battery
Sealed lead acid battery with built-in charger. Greater than 1000 measurements on lowest (10A range) and 20 hours on other
ranges from a fully charged battery
Average
Automatic average and display of measurement with forward
and reverse current
