HomeProcessingValves & Flowmeters › Gresswell Valves FIG124 Open Discharge Pressure Relief Valves


Gresswell Valves FIG124 Open Discharge Pressure Relief Valves

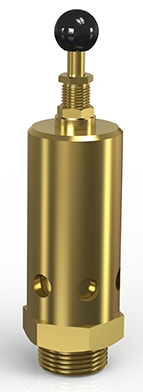

Commonly used on compressed air receivers, the Gresswell FIG 124 is an open discharge brass 'pop' type safety relief valve which offers high lift & high flow capability.

Size Range:

  DN15 (1/2") TO DN25 (1")

Pressure Range:

  0.5 BAR.G (7 PSI) TO 22.5 BAR.G (326 PSI)

Pipe Connections:

  Male Inlet (BSP, BSPT, NPT) X Open Atmospheric

Features and Benefits:

  Able to accommodate customer's connection requirements.
  Full Cat IV PED approval.
  Quality assurance approved to BS EN ISO 9001: 2008

Testing:

All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.

Flow Substance:

  Gas

Applications:

  Compressor, pipeline and receiver protection.

Pricing:

For pricing information, please fill out this Enquiry Form and we shall reply with a quotation to match your specifications. Unfortunately, we are unable to price these products over the telephone.
