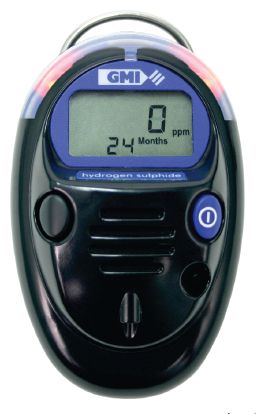

GMI PS1 Single Gas Detector

This product is now obsolete. The closest alternative is the Protege ZM Single Gas Monitor.

The PS1 monitors a single gas, for a variety of applications. Widely used in the oil and gas industry, this rugged, extremely lightweight and accurate monitor clips easily onto a collar or vest. This puts the instrument near the breathing zone for maximum user protection and safety. Audible, visual, and vibrating alarms alert the user, should gas be present and alarms can be latching until the user acknowledges that an alarm is present.

The PS1 Bump Test and Calibration Station is designed to give a fast visual indication that instruments are calibrated correctly. Just place the instrument into the cradle, close the lid. Calibration is complete in 90 seconds and bump testing in 60 seconds. Results can be easily extracted for Calibration Certificate printing at your convenience.

Manual bump testing and calibration is also possible and only requires a cylinder of test gas and regulator. A manual calibration can be perfomed in less than two minutes with results stored on the PS1.

Features

  On/Off capability
  Single gas monitors for H2S, O2, CO, SO2
  Easy one button operation
  Displays real time value
  Datalogging as standard
  Includes fully programmable menu for alarms and latching/non-latching settings
  Alarms: audible, visual, vibrating, Time Weighted Average (TWA), Short Term Exposure Limit (STEL), low battery and end of life
  Rugged stainless steel alligator clip
  2 year warranty (conditional on usage)
  Backlit LCD display
  IP67 - dust tight, and waterproof up to 1m/3ft
  Shipped with recyclable packaging


Applications

  Petrochemical
  Off-Shore
  Chemical
  Forklift Operations
  Pulp and Paper
  Cities & Municipalities
  Gas and Oil
  Fire Departments
  Boiler Room Monitoring
  and more...


Data Sheet

Ordering Information


63324 - Hydrogen Sulphide (H2S) 0-100 ppm
62403 - Hydrogen Sulphide (H2S) 0-100 ppm
63002 - Oxygen (O2) 0-25%
63424 - Carbon Monoxide (CO) 0-500 ppm
62404 - Carbon Monoxide (CO) 0-500 ppm
63524 - Sulphur Dioxide (SO2) 0-20 ppm

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
