HomeLaboratoryRockers & Rotators › Grant Bio ES20 Shaking Incubator

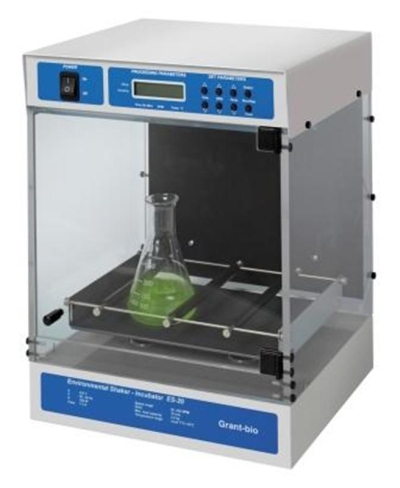

Grant Bio ES20 Shaking Incubator

The Grant Bio ES20 is a versatile programmable bench-top shaker-incubator for mixing and incubating biological fluids, samples, cell cultures and tissues.

  Digital control of time, temperature and shaking speed for accuracy and repeatability
  Variable speed: 50 to 250 rpm
  Temperature range: 25 to 42 degC
  Load up to 2.5 kg
  Interchangeable platforms for shaking/incubating different vessels

Suitable for growing cell cultures in flasks, extracting tissue samples at physiological temperatures, sample preparation processes.

  Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
  Equipped with direct drive shaking system for reliable, long-term operation
  Simple to programme time, temperature and shaking speed using clear 2-line 16 character LCD
  Option of four easily interchangeable platforms for a wide range of different
  Robust, compact construction with clear 7mm thick Plexiglass panels for easy visibility of chamber contents
  Designed for easy assembly/ disassembly - easy to move from one location to another

Accessory Platforms

P12-100 - Platform with clamps for 12 x 100ml flasks/150ml beakers. Dimensions: 250 x 190 mm

P6-250 - Platform with clamps for 6 x 250ml flasks/ 400ml beakers. Dimensions: 250 x 190 mm

PUP-12 - Universal platform, with adjustable bars for different types of container. Dimensions: 270 x 195 mm

PP-4 - Flat platform with non-slip rubber mat for Petri dishes and culture flasks. Dimensions: 219 x 219 mm

Note: A platform for accommodating 4 x 500ml flask is available as a special option.

Ordering Information

Orbital shaker-incubator compact, 50 - 250 rpm, 25 - 42°C. Order platform separately (No 120V) ES-20

Platform universal, 3 adjustable bars, holds flasks, beakers, bottles 270 x 195 x 40mm fits PSU-10i and ES-20 PUP-12
Platform flat non-slip mat 220 x 220mm fits PSU-10i and ES-20 PP-4
Platform with spring clamps for 12 x 100-150ml flasks fits PSU-10i and ES-20 P12-100
Platform with spring clamps for 6 x 250-300ml flasks fits PSU-10i and ES-20 P6-250
Platform with spring holders for 88 tubes up to 30mm fits PSU-10i and ES-20 P16-88
Adjustable bar, additional for PUP-12 platform HB-200

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
